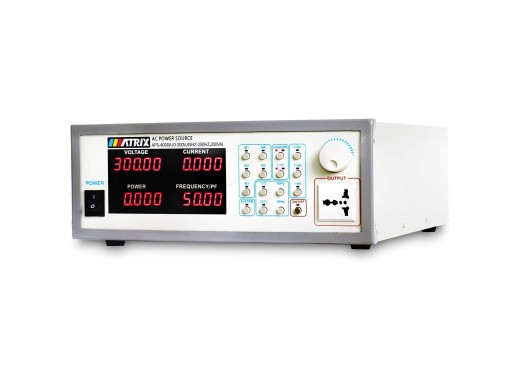

The Matrix APS-4000A is an AC power supply, suitable for powers up to 350VA and can generate frequencies up to 250Hz. The voltage can be set to a maximum of 300V, single phase. The power supply has a clear display which shows the voltage, current, active power and frequency/power factor simultaneously. This allows you to read the most important parameters at a glance.
The APS-4000A is equipped with a soft start function, which protects it from the high inrush current of a load, e.g. a motor. This power supply is also resistant to an overload of 300% during 2s. In addition, the APS-4000A has a user-friendly interface, making it intuitive to use. With key lock M1, M2, M3, M4 and M5 five sets of memory can store the commonly used voltage V and frequency F, easy to recall them by one ke
Specifications Power 350 VA Voltage range 0-150V, 0-300V Maximum current 3A Frequency range 45 — 250 Hz Setting accuracy 10 mV/ 1m A / 10 mHz Load regulation 1 % Protection OCP, OTP, overload, short circuit Dimensions 365 x 150 x 430 mm Weight 12.7 kg Accessories
The Matrix APS-4000A is standard delivered with:
- Power cord
