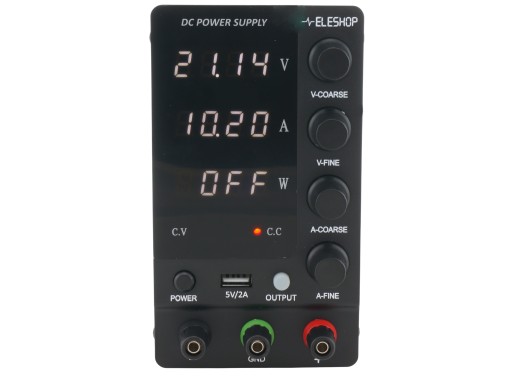

The ELE-PSU3010W is a compact, switched-mode DC power supply with a 4-digit display for accurately displaying voltage and current. Moreover, this power supply with stepless control has a large range up to 30 V and 10 A, with a high resolution of 10 mV and 1 mA. The lab power supply features a coarse tuner and a fine tuner for voltage and current which makes setting the correct voltage/current value an easy process. In addition, the power supply comes with a 5V USB output. Furthermore, the power supply has an ‘OUTPUT’ button so that the output current/voltage can easily be deactivated or reactivated with a single push of a button. Lastly, the ELE-PSU3010W is designed to be used in laboratories, schools, product lines and other electronics workplaces.
A comparable power supply with a display with red instead of white values but without an output on/off button can be found here.
Specifications Total power300 W Outputs1 Voltage range0 ~ 30 V Current range0 ~ 10 A Display accuracy & -resolution0.5% + 2 digits , Voltage: 10 mV , Current: 1 mA Eleshop noise rating Dimensions240 x 85 x 155 mm Weight1.2 kg Accessories
The ELE-PSU3010W comes by default with:
- EU power cord
- Set test leads (4mm to aligator clip)
