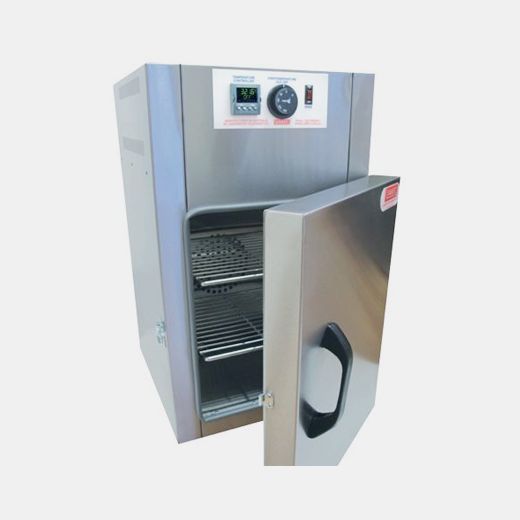

Incubator — Fan Forced — Heat Only (Ambient +5C to 60C)
Heat Only Fan Forced Incubators are manufactured in Australia with high quality stainless steel for easy maintenance and excellent durability. Suitable for applications where general warming or incubating is required. Using a jacket type heating system with elements bonded to the walls provides excellent temperature uniformity. The fan forced convection heating circulates the warm air inside the chamber providing improved uniformity and recovery after door opened.
Controller
A digital microprocessor based PID temperature controller controls the temperature within the range ambient +5C to 60C with a temperature accuracy of ±0.2C
Data logging
When optioned the controller can be connected via RS232/RS485 communication ports which can be connected directly to a data logger or computer to collect this information. Software is available for programming and monitoring.
Additional options
To suit requirements the addition of options such as an inner glass door for easy viewing, programmable controllers, timers and internal lighting are available.
Features:
- RCD/ ELB (earth leakage breaker)
- Over Temperature Thermostat
- Stainless Steel exterior
- Magnetic self closing door
- Adjustable/removable shelving
Specifications:
Cat. No.
EIEF10
EIEF14
EIEF18
EIEF24
EIEF36
EIEF50
Capacity
16L
32L
66L
160L
300L
500L
Int. Dim. (H x W x D)
25 x 25 x 25cm
35 x 30 x 30cm
46 x 38 x 38cm
60 x 50 x 50cm
90 x 60 x 50cm
120 x 65 x 65cm
Ext. Dim. (H x W x D)
63 x 38 x 47cm
73 x 42 x 50cm
80 x 49 x 58cm
97 x 63 x 72cm
128 x 74 x 72cm
157 x 73 x 83cm
Temp. Controller
Digital PID Controller
Temp. Min
Ambient +5C
Temp. Max
60C
Temp. Setting Accuracy
0.1C
Temp. Fluctuation
± 0.2C
Temp. Sensor
Pt 100 ohms
Heating System
Electric Element
Interior Material
Stainless Steel
Exterior Material
Stainless Steel
Options
Inner glass viewing window, glass viewing window, cable entry port, programmable controller, timer, additional shelves
Shelves
2
3
Safety Features
Over temperature thermostat, earth leakage breaker (ELB)
Power Supply
240V/ 50Hz
Power
150W
200W
200W
300W
600W
700W
Weight
19kg
28kg
39kg
57kg
70kg
89kg
