Description

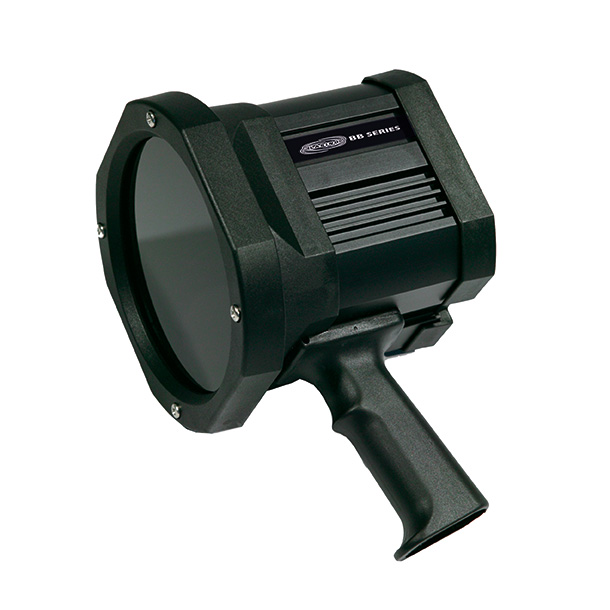

The Labino BB 2.0 UV LED Light Series is the first penetrant resistant, Ingress Protection 68 (IP68 Waterproof) rated with the world’s strongest beam (BB 2.0 Artemis). It has a new optical system with 8 UV LEDs. The beam profile has the largest, smoothest and most even of any handheld UV light on the market today. The lights come in three beam sizes and intensities varying from ≈ 4,000 μw/cm2 to ≈ 22,000 μw/cm2 and 10-11 inches / 26-28 cm.
The Labino BB 2.0 UV lights come in either mains (plug-in) or DUO (Li-ion battery) models, are 100% free from UV-B and emit almost no white light.
They are made of anodized aluminum and are all CE approved.
Their lightweight, compact size makes it easy to work with and with an instant-on function you get full power immediately.
The optional Cable Winder is compatible with all three mains versions of the BB 2.0.
Labino BB 2.0 Ikaros (L1074/L1075)
The Labino BB 2.0 Ikaros has an intensity of ≈ 4,000 μw/cm2 is compliant with ASTM E3022-15, Rolls Royce RRES 90061, Airbus AITM6-1001, Pratt & Whitney, The Boeing Company, ISO 3059-12 and USAF standards. The battery life for BB 2.0 Ikaros has now reached 7 hours.
Labino BB 2.0 Helios (L1076/L1077)
The Labino BB 2.0 Helio has an intensity of ≈ 9,000 μw/cm2 and is compliant ASTM E3022-15, Pratt & Whitney, ISO 3059-12 and USAF standards. The battery life for the BB 2.0 Helios has now reached 6 hours. Note: The US military purchases the BB Helios Midlight (L1077/L1076).
Labino BB 2.0 Artemis (L1078/L1079)
The Labino BB 2.0 Artemis is now the most powerful handheld UV LED light in the world with a UV intensity of more than ≈ 22,000 μw/cm2. This model is even more powerful than the MPXL 135 Series midlight and complies with ASTM E3022-15. High-intensity UV inspection lights are sought after by oil and gas and pipeline industries. The BB 2.0 Artemis has a battery life of 5 hours.
Warranty
All Labino BB 2.0 UV lights come with standard 2 year warranty.
Manufactured in Sweden.
Технические характеристики
Specs
| SPECIFICATIONS | |||
| BB 2.0 Artemis | BB 2.0 Helios | BB 2.0 Ikaros | |
| UV LED | 8 | 8 | 8 |
| Visible Light* | <,1 Lux / 0.09 fc | <,1 Lux / 0.09 fc | <,1 Lux / 0.09 fc |
| Irradiance* | 22 000 &mu,w/cm2 | 9 000 &mu,w/cm2 | 4 000 &mu,w/cm2 |
| Wavelength | 365 nm (peak) ±,5 nm | 365 nm (peak) ±,5 nm | 365 nm (peak) ±,5 nm |
| Beam Diameter* | >, 1000 &mu,w/cm2: 10¼, inches / 26 cm | >, 1000 &mu,w/cm2: 11 inches / 28 cm | >, 1000 &mu,w/cm2: 10 inches / 27 cm |
| UV-B | 100% free from UV-B | 100% free from UV-B | 100% free from UV-B |
| Filter | White Light Block Filter | White Light Block Filter | White Light Block Filter |
| IP Rating | IP68 Waterpoof | IP68 Waterproof | IP68 Waterproof |
| Penetrant Resistant | Yes | Yes | Yes |
| Power Supply | Li-Ion Battery (DUO)/Mains | Li-Ion Battery (DUO)/Mains | Li-Ion Battery (DUO/Mains |
| Start-up Time | Instant-On w/Full Power | Instant-On w/Full Power | Instant-On w/Full Power |
| Housing | Anodized Aluminium, Plastics PA6-30 | Anodized Aluminium, Plastics PA6-30 | Anodized Aluminium, Plastics PA6-30 |
| Housing Diameter | 140 mm (5.67 inches) | 140 mm (5.67 inches) | 140 mm (5.67 inches) |
| Mains Cord Length | 2 meters | 2 meters | 2 meters |
| Battery Running Time | 5 hours | 6 hours | 7 hours |
| Estimated LED Life Time | 30,000 hours | 30,000 hours | 30,000 hours |
| Standards | ASTM E3022-2015 | ASTM E3022-2015 | ASTM E3022-2015 |
| Weight Mains | 1.2 kg (2.6 lbs) | 1.2 kg (2.6 lbs) | 1.2 kg (2.6 lbs) |
| Weight DUO (Battery) | 1.7 kg (3.7 lbs) | 1.7 kg (3.7 lbs) | 1.7 kg (3.7 lbs) |
| CE Approved | Yes | Yes | Yes |
| Voltage | 100-240 VAC | 100-240 VAC | 100-240 VAC |
| Warranty | 2 years | 2 years | 2 years |
*At a distance of 38 cm (15 inches).
**The standard EN 3059 5.2 and ISO 9934-3 recommend to use a UV-block filter on the sensor of the Visible light meter eliminating all UV (below 380 nm) to get the accurate amount of visible light.
