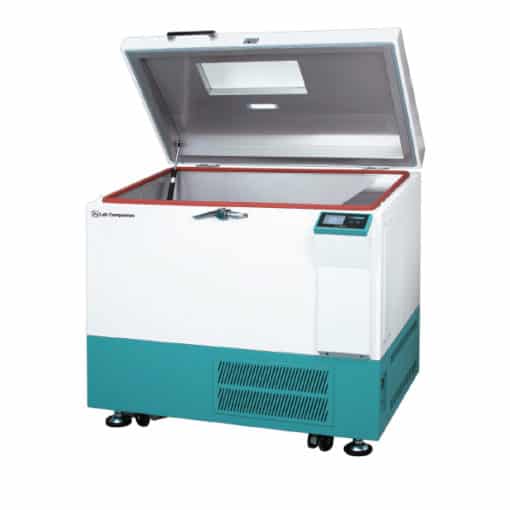

Product Description Floor type Optimal solution for mass culturing Strong DD monitor for large shaking capacity agitation. Door has a light source which can be used for plant growth testing. (RF model) 120V, 60Hz Structural Functional Features Large-capacity incubated shaker model. Up to 80C, 500rpm enables setting of various experimental conditions. It is convenient for attaching and detaching a large amount of sample because structure of door is lowering from the rear to the front. (registration: 30-2014-0060254) Three operating modes: Temperature & Shaking, Temperature, or Shaking. Easy to move/fix the product. Stable shaking of high-load samples. (patent registered: 10-1678160) Use Convenience Features Accurate rpm and temperature control through temperature auto-tuning / microprocessor PID and calibration. Monitor via mobile app anytime, anywhere with LC Connected. (mobile monitoring system) (when purchased LC GreenBox) Countdown timer (999 hours 59 minutes) of shaking operation. Spill drain port for internal cleanliness and easy maintenance. Outstanding Safety Electronic over temperature protection system. (A-OT, advanced over temperature limiter) Independent precision temperature sensor and controller provides more secure and reliable over temperature protection. Conventional over-temperature protection system. (B-OT, backup over temperature limiter) A backup device against electronic system failure, mechanically preventing over temperature even when there are electronic errors. Soft start and stop shaking function. Malfunction prevented by controller lock function. Displays all information such as device operation and error occurrence. Overcurrent protection device restricts operation when objects are caught inside the system and shaking is not possible. Smart Self-diagnosis Real-time self-diagnostics to check equipment for abnormal conditions. Alarm is generated by monitoring difference between actual rpm/temperature and set rpm/temperature. Automatic rpm adjustment when device instability occurs. (high rpm, overload, weight imbalance, etc.) Detects abnormal conditions relating to the platform on which the sample is placed and stops the operation. Automatic restart as it was operated after power recovery. Technical Specifications Weight 650 lbs Dimensions 48 58 40 in Temperature Range ( / ) Amb. +5 to 80 / Amb. +9 to 176 Fluctuation at 37 (±, / ) in flask 0.1 / 0.18 Variation at 37 (±, / ) in flask 0.5 / 0.90 Refrigerator (Hp) Shaking system Motion type Orbital Speed range (rpm) 30 to 300 Max. speed per permissible load (rpm) 300 (max. 20 kg / 44.1 Ibs) 200 (max. 35 kg / 77.2 Ibs) Amplitude size (mm / inch, dia.) 50.8 / 2 Speed stability2) (rpm, %) ±,1 Timer (count-down) 999 hr 59 min. Dimension Chamber volume (L / cu ft) 270 / 9.5 Platform (W x D, mm / inch) 755 x 520 / 29.7 x 20.5 Interior (W x D x H, mm / inch) 894 x 634 x 480 / 35.2 x 25 x 18.9 Exterior (W x D x H, mm / inch) 1128 x 854 x 1035 / 44.4 x 33.6 x 40.8 Net weight (Kg / lbs) 277 / 610.7 Electrical requirements (120V, A) 60Hz, 7.3 Cat. No. AAH23475U 1) The temperature control range of the ISF-7100 and ISF-7200 models are from 5C above the ambient temperature of the equipment. (15C to 40C) to 80C The temperature control range of the ISF-7100R and ISF-7200R models are from 20C below the ambient temperature (18C to 35C) of the device to 80C. (However, the lowest control temperature is 4C) 2) Actual rpm allowable error for set rpm is ±,1rpm if setting is less than 100rpm, ±,1% if setting is higher than 100rpm.
Технические характеристики
Technical Specifications
| Weight | 650 lbs |
|---|---|
| Dimensions | 48 × 58 × 40 in |
| Temperature | |
|---|---|
| Range (℃ / ℉) | Amb. +5 to 80 / Amb. +9 to 176 |
| Fluctuation at 37℃ (±℃ / ℉) in flask | 0.1 / 0.18 |
| Variation at 37℃ (±℃ / ℉) in flask | 0.5 / 0.90 |
| Refrigerator (Hp) | – |
| Shaking system | |
| Motion type | Orbital |
| Speed range (rpm) | 30 to 300 |
| Max. speed per permissible load (rpm) | 300 (max. 20 kg / 44.1 Ibs) 200 (max. 35 kg / 77.2 Ibs) |
| Amplitude size (mm / inch, dia.) | 50.8 / 2 |
| Speed stability2) (rpm, %) | ±1 |
| Timer (count-down) | 999 hr 59 min. |
| Dimension | |
| Chamber volume (L / cu ft) | 270 / 9.5 |
| Platform (W x D, mm / inch) | 755 x 520 / 29.7 x 20.5 |
| Interior (W x D x H, mm / inch) | 894 x 634 x 480 / 35.2 x 25 x 18.9 |
| Exterior (W x D x H, mm / inch) | 1128 x 854 x 1035 / 44.4 x 33.6 x 40.8 |
| Net weight (Kg / lbs) | 277 / 610.7 |
| Electrical requirements (120V, A) | 60Hz, 7.3 |
| Cat. No. | AAH23475U |
1) The temperature control range of the ISF-7100 and ISF-7200 models are from 5°C above the ambient temperature of the equipment. (15°C to 40°C) to 80°C The temperature control range of the ISF-7100R and ISF-7200R models are from 20°C below the ambient temperature (18°C to 35°C) of the device to 80°C. (However, the lowest control temperature is 4°C)
2) Actual rpm allowable error for set rpm is ±1rpm if setting is less than 100rpm, ±1% if setting is higher than 100rpm.
