Data Sheet: Waters Xevo TQ-S Data Sheet.pdf

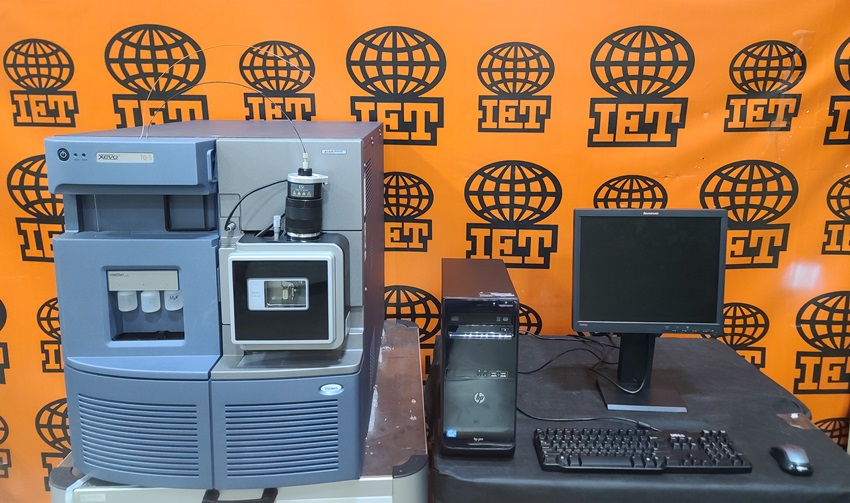

Refurbished Waters XEVO TQ-S UPLC/ MS/ MS (p/n 186005453) complete with Stepwave ion transfer optics, Scanwave collision cell for MRM, Z-Spray Lockspray Source with ESI Probe, Masslynx PC workstation, software & Edwards vacuum pumps.
OPTIONAL: Custom Waters Table, Refurbished Waters Acquity UPLC complete with sample manager, binary solvent manager, TUV, column heater. Please contact for complete Waters TQS Detector details. (Waters Acquity TQ-S/Waters Xevo TQS)
TQ-S Specifications
Mass range: 2-2048 m/z. Scan speed: 10,000 Da/s.
Acheivable acquisition rates: 10 scans per second (m/z 50-1000) & 20 scans per second (m/z 50 to 500)
MRM Sensitivity (ESI+): A 50 fg on-column injection of reserpine will give a chromatographic signal to noise greater than 300:1 (LC mobile phase flow rate of 0.8 mL/min, MRM transition m/z 609>,195)
MRM Sensitivity (ESI-): A 1 pg on-solumn injection of chloramphenicol will give a chromatogrpahic signal to noice greater than 3000:1 (LC mobile phase flow rate of 0.8 mL/min, MRM transition m/z 321>,152)
MRM Sensitivity (APCI+): 1 1pg on-column injection of 17 alpha hydroxyprogesterone will give a chromatographic signal to noise greater than 100:1 (LC mobile phase flow rate of 0.8 mL/min, MRM transition m/z 331>,109)
