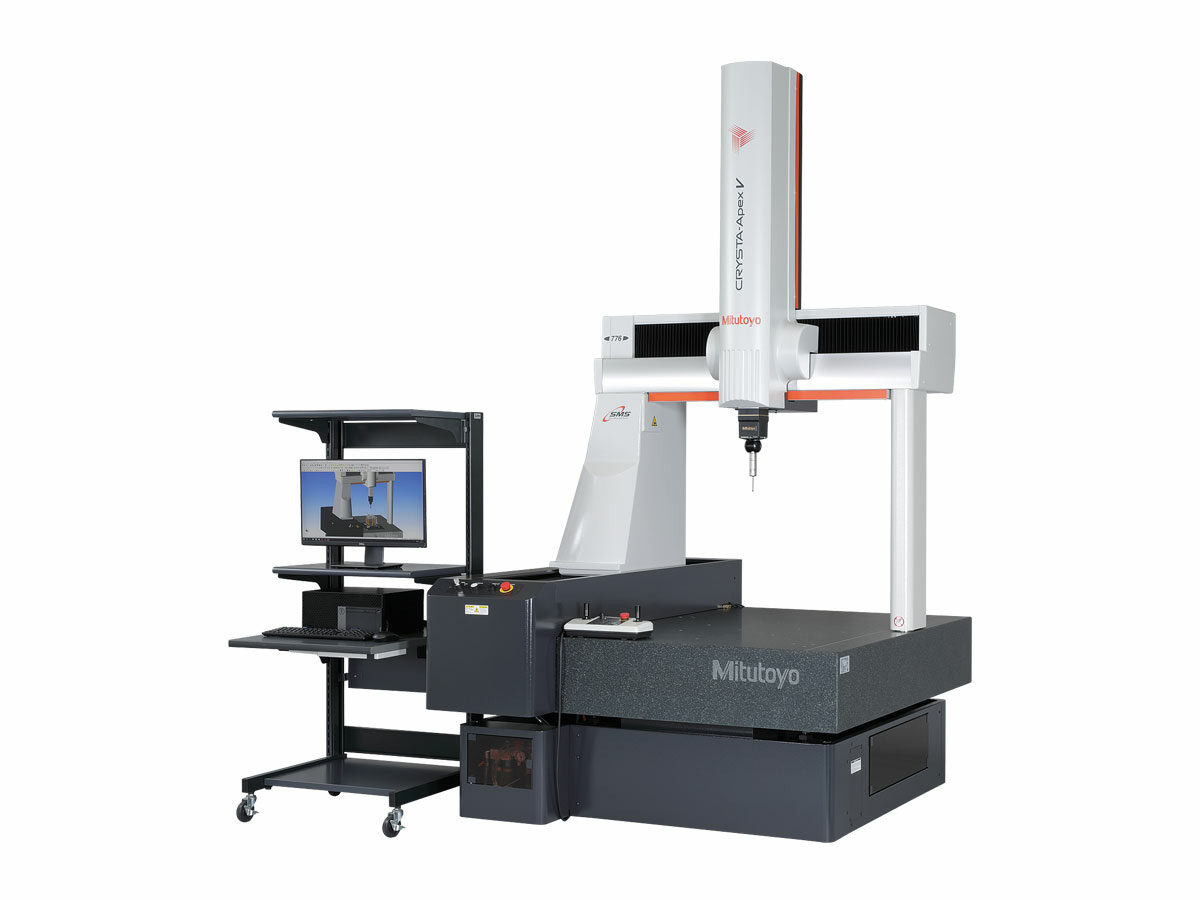

КРИСТАЛЛ-Апекс V

The CRYSTA-Apex V series is a new generation CNC CMM that delivers great versatility and speed while leveraging IoT technologies for smart factory opportunities. Available in a size range of 400mm to 4000mm (15.7″ to 157.47″), the CRYSTA-Apex V provides accuracy that is unmatched by any previous general purpose measuring machine for small to mid-sized workpieces.

• SMS (Smart Measuring System) – system for on-line monitoring and operational status of a measuring machine with data visualization to enable product quality improvement

• Real-time CMM and workpiece temperature compensation (standard feature)

• High-speed optimal path scanning with high-speed active scanning

• Multi-sensor support with an array of contact and non-contact probes that includes tactile, scanning, laser, optical, surface finish measuring

Order No.:	CMM Model:	Range X-Axis:	Range Y-Axis:	Range Z-Axis:	Worktable Size:	Workpiece Max Height:	Workpiece Max Load:	Machine Mass:	Machine Dimensions:	Air Supply:	Air Consumption:	Air Source:	Probe System:	Touch Trigger Probe:	Optical Probe:	Accessories:	Required Accessories:	Optional Accessories:

Order No.:

191-121

CRYSTA-APEX
V544

19.68″
(500mm)

15.74″
(400mm)

25.11 x 33.86″
(638 x 860mm)

21.45″
(545mm)

396lbs
(180kg)

1,135lbs
(515kg)

42.60×46.88×86.02″
(1082x1191x2185mm)

58PSI
(0.4MPa)

1.76CFM
(50L/min)

3.53CFM
(100L/min)

PH20/PH10MQ

TP20/TP200

QVP

Accessories

191-125

CRYSTA-APEX
V574

19.68″
(500mm)

27.55″
(700mm)

15.74″
(400mm)

25.11 x 45.67″
(638 x 1160mm)

21.45″
(545mm)

396lbs
(180kg)

1,377lbs
(625kg)

42.60×60.94×86.02″
(1082x1548x2185mm)

58.0PSI
(0.4MPa)

1.76CFM
(50L/min)

3.53CFM
(100L/min)

—

Accessories

191-481

CRYSTA-APEX
V121210

47.24″
(1200mm)

39.36″
(1000mm)

55.90 x 67.71″
(1420 x 2165mm)

47.24″
(1200mm)

4,409lbs
(2000kg)

8,928lbs
(4050kg)

86.61×102.16×143.50″
(2200x2595x3645mm)

1200PSI
(8.27MPa)

3.53CFM
(100L/min)

5.29CFM
(150L/min)

—

191-485

CRYSTA-APEX
V122010

47.24″
(1200mm)

78.74″
(2000mm)

39.36″
(1000mm)

55.90 x 116.73″
(1420 x 2965mm)

47.24″
(1200mm)

5,511lbs
(2500kg)

13,558lbs
(6150kg)

86.61×133.66×143.50″
(2200x3395x3645mm)

1200PSI
(8.27MPa)

3.53CFM
(100L/min)

5.29CFM
(150L/min)

—

191-489

CRYSTA-APEX
V123010

47.24″
(1200mm)

118.11″
(3000mm)

39.36″
(1000mm)

55.90 x 156.10″
(1420 x 3965mm)

47.24″
(1200mm)

6,613lbs
(3000kg)

20,084lbs
(9110kg)

86.61×173.03×143.50″
(2200x4395x3645mm)

1200PSI
(8.27MPa)

3.53CFM
(100L/min)

5.29CFM
(150L/min)

—

191-561

CRYSTA-APEX
V776

27.55″
(700mm)

23.62″
(600mm)

34.64 x 55.90″
(880 x 1420mm)

31.49″
(800mm)

1,763lbs
(800kg)

3,692lbs
(1675kg)

57.87×66.92×107.48″
(1470x1700x2730mm)

58PSI
(0.4MPa)

2.11CFM
(60L/min)

4.23CFM
(120L/min)

PH20/PH10MQ

TP20/TP200

QVP

Accessories

191-565

CRYSTA-APEX
V7106

27.55″
(700mm)

39.36″
(1000mm)

23.62″
(600mm)

34.64 x 67.71″
(880 x 1720mm)

31.49″
(800mm)

2,204lbs
(1000kg)

4,301lbs
(1951kg)

57.87×78.73×107.48″
(1470x2000x2730mm)

58PSI
(0.4MPa)

2.11CFM
(60L/min)

4.23CFM
(120L/min)

PH20/PH10MQ

TP20/TP200

QVP

Accessories

191-569

CRYSTA-APEX
V9106

35.43″
(900mm)

39.36″
(1000mm)

23.62″
(600mm)

42.51 x 67.71″
(1080 x 1720mm)

31.49″
(800mm)

2,645lbs
(1200kg)

4,918lbs
(2231kg)

65.74×78.73×107.48″
(1670x2000x2730mm)

58PSI
(0.4MPa)

2.11CFM
(60L/min)

4.23CFM
(120L/min)

PH20/PH10MQ

TP20/TP200

QVP

Accessories

191-574

CRYSTA-APEX
V9166

35.43″
(900mm)

62.99″
(1600mm)

23.62″
(600mm)

42.51 x 91.33″
(1080 x 2320mm)

31.49″
(800mm)

3,306lbs
(1500kg)

6,322lbs
(2868kg)

65.74×107.87×107.48″
(1670x2740x2730mm)

58PSI
(0.4MPa)

2.11CFM
(60L/min)

4.23CFM
(120L/min)

PH20/PH10MQ

TP20/TP200

QVP

Accessories

191-578

CRYSTA-APEX
V9206

35.43″
(900mm)

78.73″
(2000mm)

23.62″
(600mm)

42.51 x 107.08″
(1080 x 2720mm)

31.49″
(800mm)

3,968lbs
(1800kg)

8,624lbs
(3912kg)

65.74×126.77×107.48″
(1670x3220x2730mm)

58PSI
(0.4MPa)

2.11CFM
(60L/min)

4.23CFM
(120L/min)

PH20/PH10MQ

TP20/TP200

QVP

Accessories

191-583

CRYSTA-APEX
V9108

35.43″
(900mm)

39.36″
(1000mm)

31.49″
(800mm)

42.51 x 67.71″
(1080 x 1720mm)

39.36″
(1000mm)

2,645lbs
(1200kg)

4,985lbs
(2261kg)

65.74×78.73×123.22″
(1670x2000x3130mm)

58PSI
(0.4MPa)

2.11CFM
(60L/min)

4.23CFM
(120L/min)

PH20/PH10MQ

TP20/TP200

QVP

Accessories

191-587

CRYSTA-APEX
V9168

35.43″
(900mm)

62.99″
(1600mm)

31.49″
(800mm)

42.51 x 91.33″
(1080 x 2320mm)

39.36″
(1000mm)

3,306lbs
(1500kg)

6,389lbs
(2898kg)

65.74×107.87×123.22″
(1670x2740x3130mm)

58PSI
(0.4MPa)

2.11CFM
(60L/min)

4.23CFM
(120L/min)

PH20/PH10MQ

TP20/TP200

QVP

Accessories

191-592

CRYSTA-APEX
V9208

35.43″
(900mm)

78.74″
(2000mm)

31.49″
(800mm)

42.51 x 107.08″
(1080 x 2720mm)

39.36″
(1000mm)

3,968lbs
(1800kg)

8,691lbs
(3942kg)

65.74×126.77×123.22″
(1670x3220x3130mm)

58PSI
(0.4MPa)

2.11CFM
(60L/min)

4.23CFM
(120L/min)

PH20/PH10MQ

TP20/TP200

QVP

Accessories

191-812H

CRYSTA-APEX
203016

78.74″
(2000mm)

118.11″
(3000mm)

62.99″
(1600mm)

86.61 x 165.55″
(2200 x 4205mm)

70.86″
(1800mm)

8,818lbs
(4000kg)

31,085lbs
(14100kg)

122.04×183.07×196.45″
(3100x4650x4990mm)

58PSI
(0.4MPa)

5.29CFM
(150L/min)

7.06CFM
(200L/min)

PH10MQ

TP200

—

191-816H

CRYSTA-APEX
204016

78.74″
(2000mm)

157.47″
(4000mm)

62.99″
(1600mm)

86.61 x 204.92″
(2200 x 5205mm)

70.86″
(1800mm)

11,023lbs
(5000kg)

42,769lbs
(19400kg)

122.04×222.44×198.42″
(3100x5650x5040mm)

58PSI
(0.4MPa)

5.29CFM
(150L/min)

7.06CFM
(200L/min)

PH10MQ

TP200

—

191-848

CRYSTA-APEX
162012

62.99″
(1600mm)

78.74″
(2000mm)

47.24″
(1200mm)

70.86 x 126.18″
(1800 x 3205mm)

55.11″
(1400mm)

6,613lbs
(3000kg)

20,502lbs
(9300kg)

106.29×143.70×162.99″
(2700x3650x4140mm)

58PSI
(0.4MPa)

5.29CFM
(150L/min)

7.06CFM
(200L/min)

—

191-848H

CRYSTA-APEX
162012

62.99″
(1600mm)

118.11″
(3000mm)

47.24″
(1200mm)

70.86 x 126.18″
(1800 x 3205mm)

55.11″
(1400mm)

7,716lbs
(3500kg)

23,368lbs
(10600kg)

106.29×183.07×162.99″
(2700x4650x4140mm)

58PSI
(0.4MPa)

5.29CFM
(150L/min)

7.06CFM
(200L/min)

—

191-853

CRYSTA-APEX
164012

62.99″
(1600mm)

157.47″
(4000mm)

47.24″
(1200mm)

70.86 x 126.18″
(1800 x 3205mm)

55.11″
(1400mm)

9,920lbs
(4500kg)

32,628lbs
(14800kg)

106.29×222.44×164.96″
(2700x5650x4190mm)

58PSI
(0.4MPa)

5.29CFM
(150L/min)

7.06CFM
(200L/min)

—

191-853H

CRYSTA-APEX
162016

62.99″
(1600mm)

78.74″
(2000mm)

62.99″
(1600mm)

70.86 x 126.18″
(1800 x 3205mm)

70.86″
(1800mm)

6,613lbs
(3000kg)

20,613lbs
(9350kg)

106.29×143.70×194.48″
(2700x3650x4940mm)

58PSI
(0.4MPa)

5.29CFM
(150L/min)

7.06CFM
(200L/min)

—

191-857

CRYSTA-APEX
163016

62.99″
(1600mm)

118.11″
(3000mm)

62.99″
(1600mm)

70.86 x 126.18″
(1800 x 3205mm)

70.86″
(1800mm)

7,716lbs
(3500kg)

23,479lbs
(10650kg)

106.29×183.07×194.48″
(2700x4650x4940mm)

58PSI
(0.4MPa)

5.29CFM
(150L/min)

7.06CFM
(200L/min)

—

191-857H

CRYSTA-APEX
164016

62.99″
(1600mm)

157.47″
(4000mm)

62.99″
(1600mm)

70.86 x 126.18″
(1800 x 3205mm)

70.86″
(1800mm)

9,920lbs
(4500kg)

32,738lbs
(14850kg)

106.29×222.44×196.45″
(2700x5650x4990mm)

58PSI
(0.4MPa)

5.29CFM
(150L/min)

7.06CFM
(200L/min)

—

191-121
191-125
191-481
191-485
191-489
191-561
191-565
191-569
191-574
191-578
191-583
191-587
191-592
191-812H
191-816H
191-848
191-848H
191-853
191-853H
191-857
191-857H

Технические характеристики

Technology:	Coordinate Measuring Machine — CNC
Units:	Inch, Metric
Resolution:	0.000004′ (0.0001mm)
Guide Method:	Air bearing on each axis
Worktable Material:	Granite
Worktable Tapped Inserts:	M8 x 1.25mm
Environment:	64.4-71.6°F 18-22°C
Vibration Stand:	Optional
Scanning Probe:	MPP, SP25, SP80
Laser Probe:	SurfaceMeasure
Surface Roughness Probe:	SurfTest
