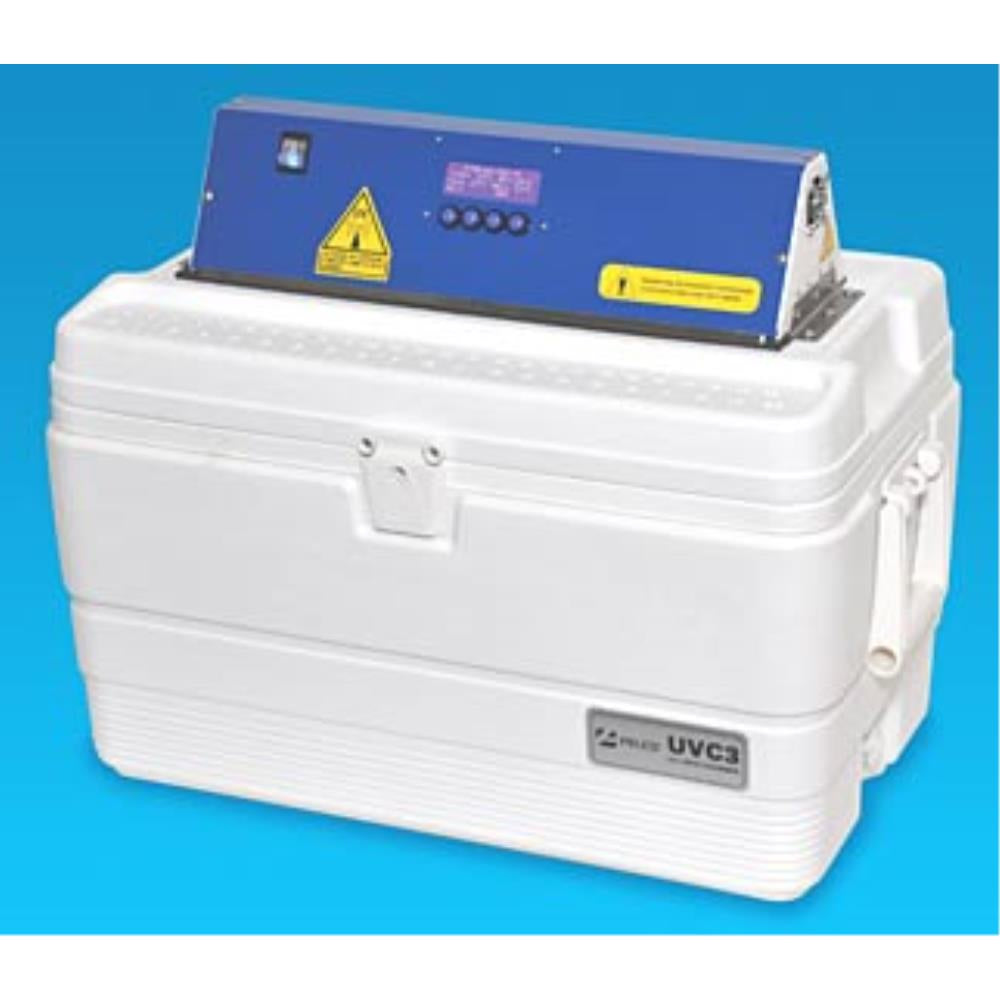

The PELCO UVC3 Cryo Chamber provides an economical yet precisely controlled low temperature polymerization environment for cryo specimen preparation.
This simple and functional unit has a large insulated chamber and comprises fully automatic temperature control, perfect for:
- Unicryl
- LR White
- LR Gold
- Lowicryls
- JB-4
- Quetols
- all other resins cured by 365nm UV radiation.
It can also be used for dehydration and infiltration of cryo specimens.
Features
- Liquid crystal display and PLC control
- Fan cooled electronic ballast for UV lamp tubes
- Temperature range can be set from -10 deg. C to -40 deg. C
- Includes memory function for Min/Max temperatures during any run
- 365nm ultraviolet lamps thermally shielded by dual pane Plexiglas
- Holds up to 66 samples with BEEM Cryo Capsule Holders
- 3 BEEM cryo capsule holders included.
Operation
- Add dry ice to the chamber
- Set temperature (-10 deg. C to -40 deg. C / 14 deg. F to -40 deg. F)
- Turn on UV lamp and cure embedding resins
Specifications
UV Light Source Two 15-watt self-filtering long wavelength tubes
1600 µW/cm_ of 365nm UV radiation at 150mm Temperature Control -10 deg. C to -40 deg. C Typically ± 1.5 deg. C Control Type LCD Display with PLC with function buttons Exterior Dimensions 641 L x 368 W x 489mm H Interior Dimensions 565 L x 305 W x 337mm H Power Requirements 110 — 240VAC, 50/60Hz (240V-0.5A, 110V-1A) Weight 11.4 kg / Shipping weight: 18.2kg
