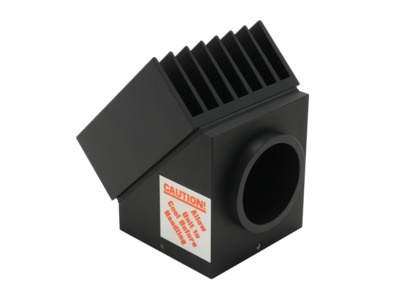

The 66245 Beam Turning Mirror Holder has 1.5 Inch Series male and female-flanged apertures. The male flange end fits to the output of an Oriel Lamp Housing condenser. The female flange end accepts lens holders, shutters, or other male-flanged components. Most of the IR is transmitted through the dichroic mirror and absorbed by the mirror housing where a heat sink dissipates the heat. The outside of the mirror housing, particularly the fins of the heat sink, become very hot, especially when used with our high wattage sources. Personnel should use caution when working around these sources.
Технические характеристики
- Type Beam Turning Assembly
- Flange Series Size 1.5 Inch
- Flange Type Male and Female
