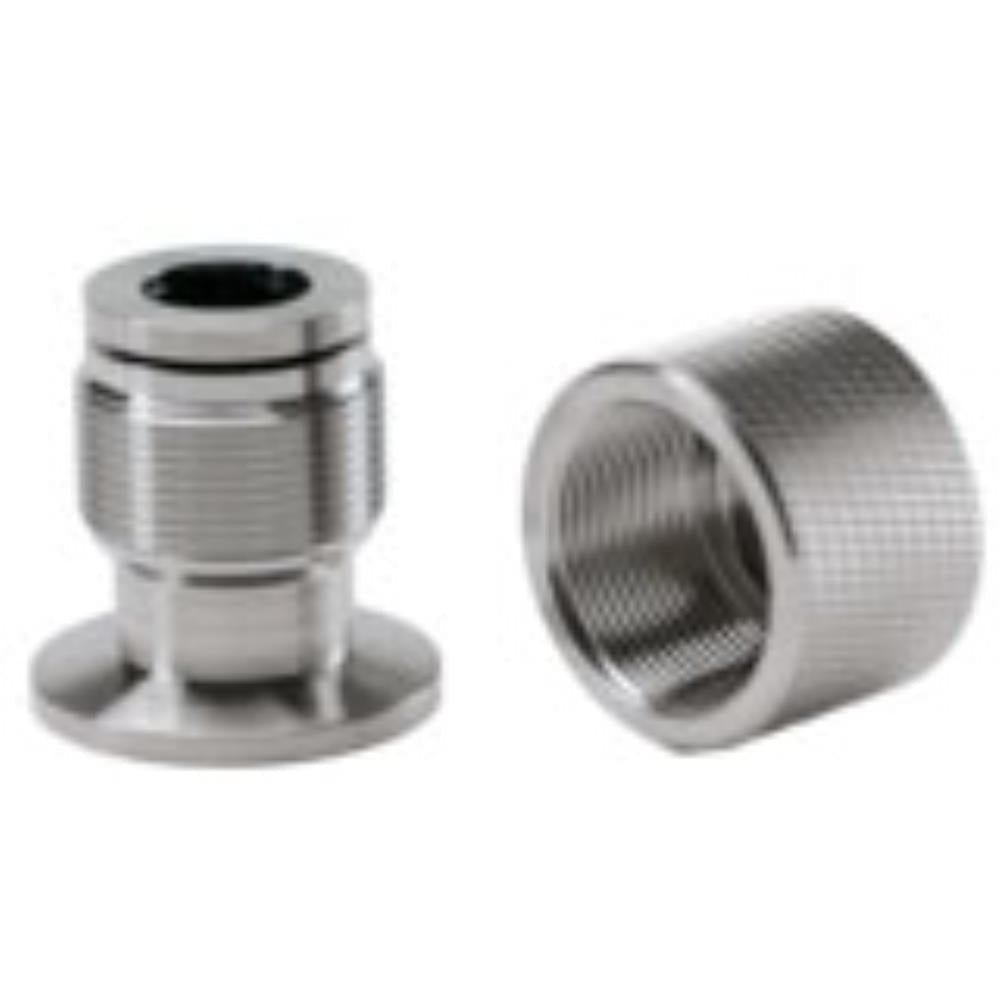

These NW/KF to quick compression couplings allow the connection of standard tube or vacuum gauges to vacuum systems. Available for several standard tube sizes on NW16, NW25 and NW40. A convenient way to connect tubes without the need for welding. Ideal for temporary, test and research set-ups. Allows for adjustment and can be easily removed for a vacuum system. All stainless steel 304 construction with adapter, compression ring, cap and O-ring.
Specifications:
Product Hose Size Dimensions NW/KF16 VCC-KF16-03
3.18mm A=3.3mm, B=36mm
VCC-KF16-05
4.76mm A=4.8mm, B=36mm
VCC-KF16-06
6.35mm A=6.9mm, B=36mm
VCC-KF16-09
9.53mm A=9.6mm, B=36mm
VCC-KF16-12
12.7mm A=13.2mm, B=38mm
NW/KF25 VCC-KF25-03
3.18mm A=3.3mm, B=36mm
VCC-KF25-05
4.76mm A=4.8mm, B=36mm
VCC-KF25-06
6.35mm A=6.9mm, B=36mm
VCC-KF25-09
9.53mm A=9.6mm, B=36mm
VCC-KF25-12
12.7mm A=13.2mm, B=38mm
VCC-KF25-19
19mm A=19.6mm, B=46mm
NW/KF40 VCC-KF40-03
3.18mm A=3.3mm, B =36mm
VCC-KF40-05
4.76mm A=4.8mm, B=36mm
VCC-KF40-06
6.35mm A=6.9mm, B=36mm
VCC-KF40-09
9.53mm A=9.6mm, B=36mm
VCC-KF40-12
12.7mm A=13.2mm, B=38mm
VCC-KF40-19
19mm A=19.6mm, B=46mm
VCC-KF40-26
25.4mm A=26mm, B=51mm
