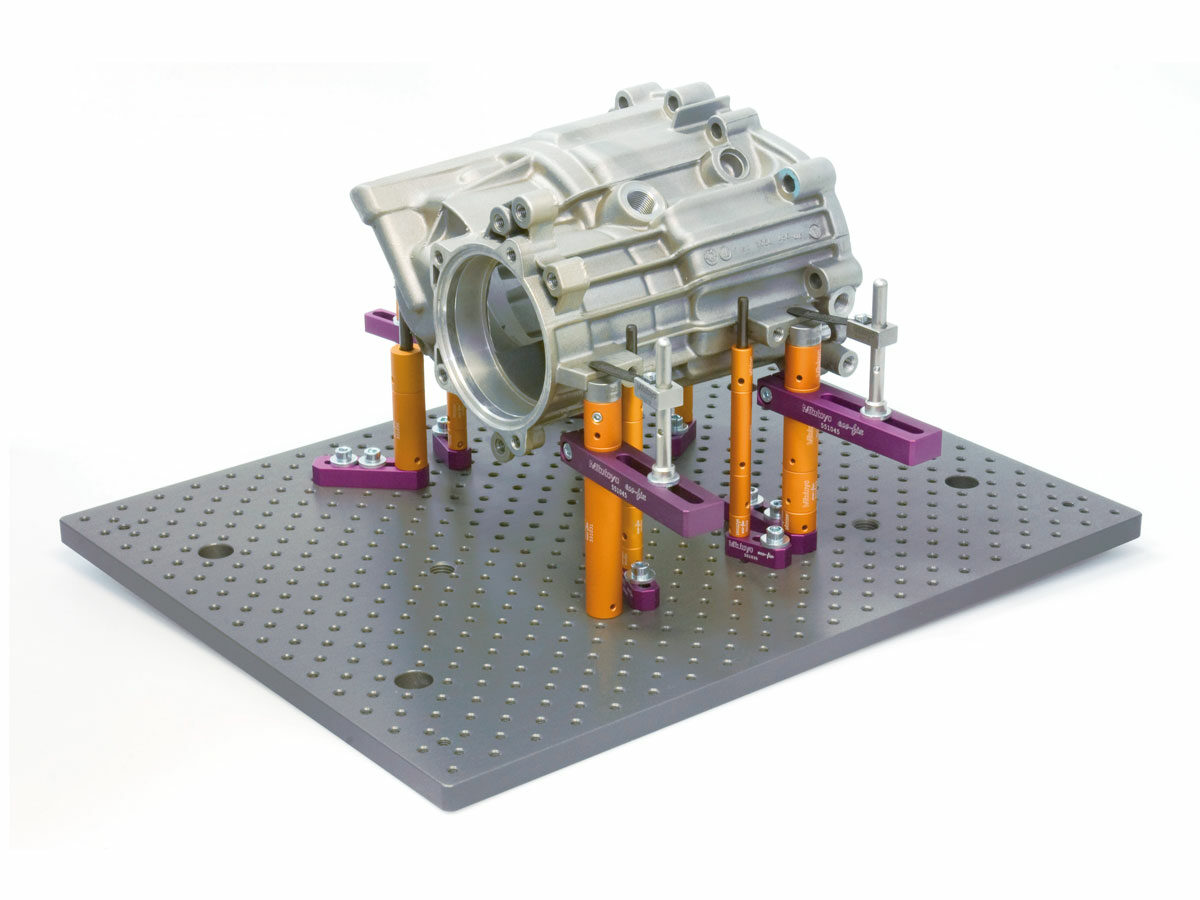

Mitutoyo CMM ECO-FIX fixture kits for modular CMM and Vision Measuring Systems work well for securing different part sizes and types for more accurate and efficient measurements. The fixture kit design combines operational modularity advances with lower-cost solutions including the reduction or elimination of hard fixturing costs and setup. The system is comprised of well-marked, color-coded components designed to simplify part measurement requirements.
- Magnetic or threaded fastening points deliver fast, plug-and-play connectivity
- First-time fixturing jobs can be established and reconfigured in a matter of minutes for quick future part measurement turnaround
- Fixtures can be built and stored to meet all common part measurement requirements as needed
- Base plates are hard coated and other components are machined for durability
| Order No.: | Kit Description: | Product Image: | Number of Items: | Kit Components: |
|---|
| Order No.: |
|---|
| K515432 | Fixing plate for MRS-400 | — | 1 | Plate size LxWxD: 120x415x15mm |
| K515433 | Fixing plate for MRS-600 | — | 1 | Plate size LxWxD: 120x730x15mm |
| K551048 | Eco-Fix Kit S | — | 59 | Base Plate (250x250mm), location pins, straight pins (threaded), adjustable pins, receiver brackets, spring clips, v-block, cone receiver, stopper element, back square, slotted nuts, Allen wrenches (2, 3, 4, 5mm), spanner, M6 screws/washers |
| K551089 | Eco-Fix Kit MAG S | — | 70 | Base Plate (250x250mm), location pins, adjustable pins, receiver brackets, magnetic receivers, slotted nuts, Allen wrenches (2, 3, 4, 5mm), spanner, M6 screws/washers
|
| K551090 | Eco-Fix Kit MAG L | — | 79 | Base Plate (500x400mm), location pins, adjustable pins, receiver brackets, magnetic receivers, slotted nuts, Allen wrenches (2, 3, 4, 5mm), spanner, M6 screws/washers
|
| K551123 | Location Pins 1 | — | 27 | Location pins ø12: L13mm, L25mm, L50mm, L100mm. Location pins ø12mm w/hole ø6 mm, Adjustable location pins ø12mm
|
| K551124 | Location Pins 2 | — | 27 | Location pins ø20: L13mm, L25mm, L50mm, L100mm. Location pins ø20mm w/hole ø6 mm, Adjustable location pins ø20mm
|
| K551125 | Clamping Elements 1 | — | 10 | Straight pin with thread, Spring clip ø8xL40mm, Spring clip ø8xL60mm
|
| K551126 | Supporting Elements 1 | — | 17 | Flat top ø12mm, Stopper element mini ø12mm, Back square mini ø12mm, V-block mini ø12mm, Sphere top ø12mm, Cone receiver mini ø12mm
|
| K551127 | Supporting Elements 2 | — | 17 | Flat top ø20mm, Stopper element mini ø20mm, Back square mini ø20mm, V-block mini ø20mm, Sphere top ø20mm, Cone receiver mini ø20mm
|
| K551128 | Straight Pins | — | 35 | Straight pin mini ø6: 20, 40, 60mm, Straight pin mini ø8: 30, 50, 65, 85mm
|
| K551186 | CMM Base Plate AS/AV544 | — | 1 | Plate size LxWxD: 570x540x15mm |
| K551187 | CMM Base Plate AS/AV574 | — | 1 | Plate size LxWxD: 605x840x15mm |
| K551190 | CMM Base Plate AS/AV776 | — | 2 | Plate size LxWxD: 830x840x15mm |
| K551191 | CMM Base Plate AS/AV7106 | — | 2 | Plate size LxWxD: 815x1140x15mm |
| K551192 | CMM Base Plate AS/AV9106/9108 | — | 2 | Plate size LxWxD: 970x1140x15mm |
| K551193 | CMM Base Plate AS/AV9166/9168 | — | 3 | Plate size LxWxD: 970x1740x15mm |
| K551194 | CMM Base Plate AS/AV9206/9208 | — | 4 | Plate size LxWxD: 970x2140x15mm |
| K551218 | Eco-Fix Pallet Receiver Kit S | — | 64 | Base Plate (250x250mm), Receiver Plate, ballscrews, handles, location pins, straight pins (threaded), adjustable pins, receiver brackets, spring clips, v-block, cone receiver, stopper element, back square, slotted nuts, Allen wrenches (2, 3, 4, 5mm), spanner, M6 screws/washers |
| K551219 | Eco-Fix Pallet Receiver Kit L | — | 103 | Base Plate (500x400mm), Receiver Plate, ballscrews, handles, location pins, straight pins (threaded), adjustable pins, receiver brackets, spring clips, v-block, cone receiver, stopper element, back square, back square mini, slotted nuts, Allen wrenches (2, 3, 4, 5mm), spanner, M6 screws/washers |
| K551549 | Eco-Fix Kit L | — | 98 | Base Plate (500x400mm), location pins, straight pins (threaded), adjustable pins, receiver brackets, spring clips, v-block, cone receiver, stopper element, back square, back square mini, slotted nuts, Allen wrenches (2, 3, 4, 5mm), spanner, M6 screws/washers |
