last updated : 2018/12/31
| Code | Description | Budget Price | Ship. weight | Ship. vol. | ||
|---|---|---|---|---|---|---|
| KWATTANKR45 | KIT, WATER TANK, 45 m3, rigid, corrugated | CH 4 007,30 | 513kg | 2,24m³ | Add | |
General information
Rigid lightweight water tank: quick setup, packs to a small volume for transport (compared to final capacity).
Corrugated steel sheets provide the tank’s rigidity, models made of flat plain sheets are not recommended. The sheets for the 10m³ tank are specifically designed for this model. The sheets for the 45, 70 and 95m³ models are similar in shape and size.

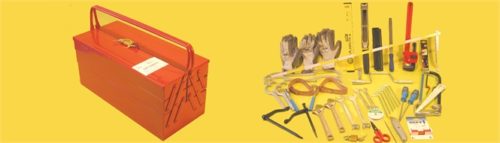

The tools required to install the tanks are provided in the tank kit, code KWATTANKRTO1. To connect tanks together and to a network, order the standard fittings set, code KWATTANKRFI3.
Where possible, set the tanks up in an elevated position to permit gravity distribution.
Ensure the tanks are adequately secured, particularly when empty or during high winds, use guy ropes and bank earth around the lower sections.
Use tank roof covers and keep them well lashed down.
Specifications
Corrugated galvanized iron sheet.
Each tank has 3 outlet holes for 3″ connectors, one hole fitted with a blanking plate.
EPDM synthetic rubber liner, 1.25mm thick, reinforced, welded, to fit d: 6.4m tank.
The liner allows for a 300mm-turndown on the outside with 4 eyelets spaced at 1m-intervals around the edges.
Connector flanges to be pre-assembled with studs, bolts, washers and gaskets.
PVC-coated polyester roof.
Base plate for the roof-support column has countersunk holes to prevent damage to the lining from friction with the bolt heads.
Bolts and nuts are all zinc-plated for high corrosion resistance.
Good-quality spanners, designed for intensive use.
Packaging | |||
KIT, WATER TANK, 45m3, rigid, corrugated, 3 parcels | 282kg: 252kg: 78kg: | 2.9×0.8×0.58m 1.33×0.92×0.86m 1.36×0.64×0.48m | |
KWATTANKR45 Content list — Export content list (excel file)
| Code | Description | Qty | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
KWATTANKR45A | KIT, LINER+ACCESSORIES, for 45m3 rigid corrugated watertank | 1 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| KWATTANKR45R | KIT, CONICAL ROOF, for 45m3 rigid corrugated watertank | 1 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| KWATTANKR45S | KIT, STEEL, for 45m3 rigid corrugated watertank | 1 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
