With this Tekbox DC-LISN-Combo1 set you have all the components to measure the conducted noise on the power line of your Device Under Test (DUT). Thanks to the two included TBOH01 DC LISNs and the TBLM01 LISN Mate the conducted noise on a power line can be analysed and split into the differential- and common mode components, as shown in the second picture.
The included LISNs are intended for EMC pre-compliance measurements on the supply line of DC-powered devices, measuring in the frequency range from 150 kHz to 110 MHz. More information on the individual products can be found on their respective pages and datasheets.
Supplied products

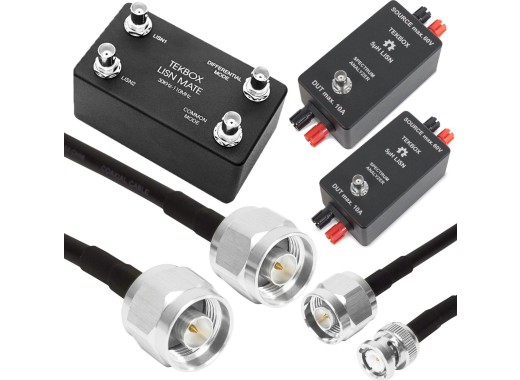

The following products are included with the Tekbox DC-LISN-Combo1 set:
- 2x Tekbox TBOH01 DC LISN
- 1x Tekbox TBLM01 LISN Mate
- 1x BNC termination plug
- 2x N-male to BNC-male 75cm RG58 cable
- 1x BNC-male to BNC-male 35cm RG223 cable
