The MegaGuard WalkPlus (SG9265080) is a portable measuring system which is designed for the measurement of electrostatic charge on the human body. The meter is also able to measure temperature and humidity. The Walkplus does not require a PC for the measurements, as all data is recorded to the internal memory. However, a PC can be used with the included software set to retrieve data from the device. Test results can be instantly displayed on the LCD display. Specifications Sampling frequency200 Hz Resolution1V Measurement accuracy5 % or ±, 5V Range±, 1050V Input resistance10 14 DisplayLCD, 128 x 64 pixels ConnectionsUSB StandardsIEC 61340-4-5 Dimensions243 x 130 x 60 mm Weight0.9 kg Accessories

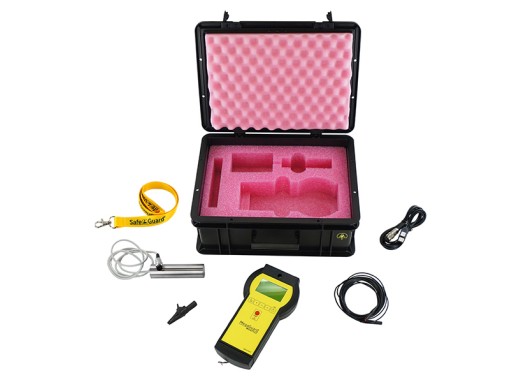

The MegaGuard WalkPlus includes:
- Batteries (6x LR6)
- Earthing cable
- Software set
- Shoulder strap
- USB cable
- Conductive case
