The compact design of the Mitutoyo Series 0 dial indicator provides use in tight, restricted spaces. The jeweled bearing has a high wear resistance, and the balanced scale makes this indicator ideal for comparing measurements to a master. The stem and spindle are constructed of hardened steel for better durability. The glare-free crystal has a scratch-resistant coating for clearer readings and better durability. A revolutionary offset spindle bushing design provides trouble-free stem clamping and a longer clamping range.
- Available in Metric or Inch models
- Available with flat or lug backs
- Bezel diameter: 31mm/1.22”
- Greater rigidity in the bearing plate reduces retracing error by up to 20%
- 4-Screw mounting increases impact resistance for better, longer accuracy
- No through screw hole on the frame provides better dust resistance
- Contact point is carbide tipped for lasting accuracy, durability
- The indicator is anti-magnetic to keep steel filings from collecting on the contact
- Crystal is glare-free with a scratch-resistant coating
- Measuring force: 0.3-1.8N
- Inch indicators meet ANSI/AGD standards
- Metric indicators meet JIS/ISO standards
| Order No.: | Units: | Stem diameter: | Thread type: | Graduation: | Min Range: | Max Range: | Range revolution: | Dial reading: | Back Type: | Accuracy revolution: | Accuracy: | ANSI/AGD type: | ISO/JIS type: | |
|---|

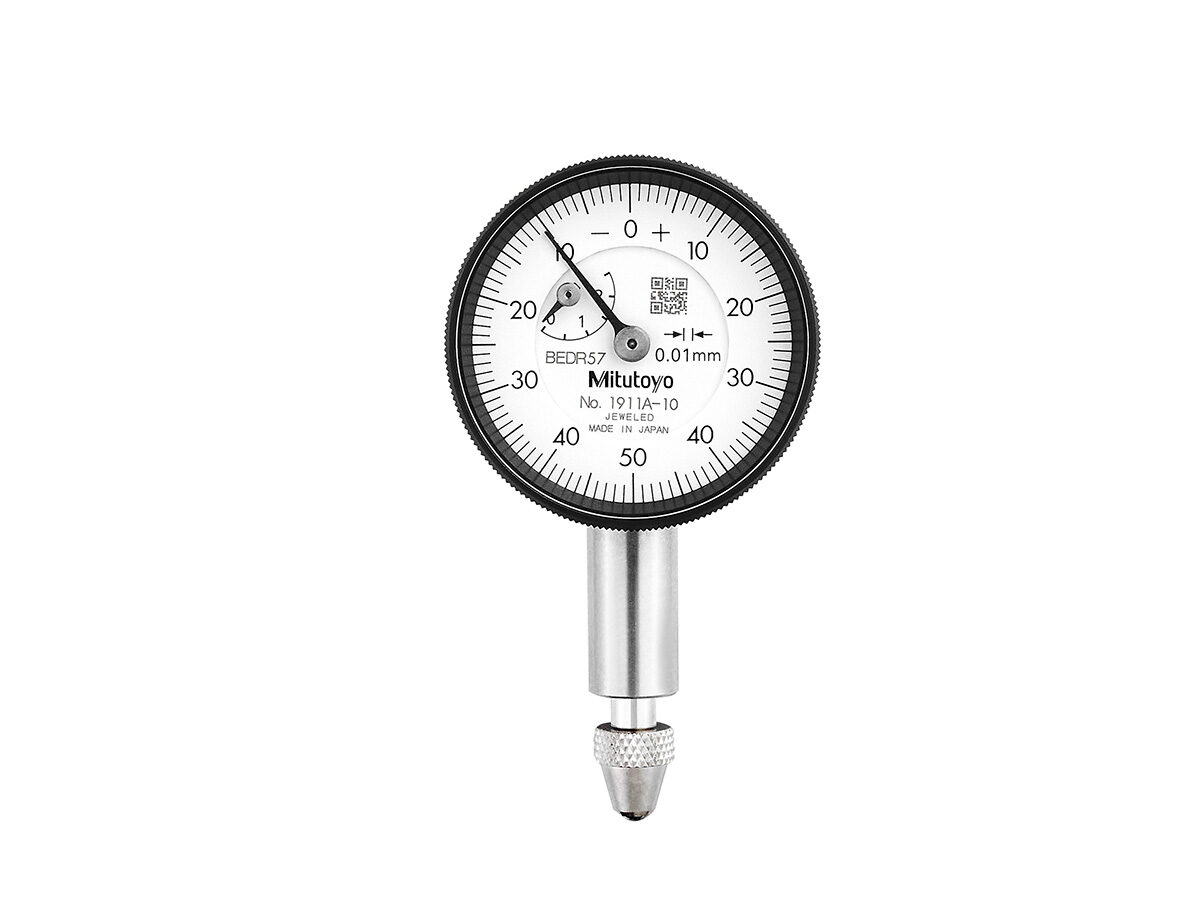

| 1911A-10 | Metric | 8mm | M2.5 X 0.45 | 0.01mm | 0mm | 2.5mm | 1mm | 0-50-0 | Lug | ±10µm | ±12µm | — | Yes |
| 1911AB-10 | Metric | 8mm | M2.5 X 0.45 | 0.01mm | 0mm | 2.5mm | 1mm | 0-50-0 | Flat | ±10µm | ±12µm | — | Yes |
| 1913A-10 | Metric | 8mm | M2.5 X 0.45 | 0.002mm | 0mm | 0.5mm | 0.2mm | 0-100-0 | Lug | ±5µm | ±6µm | — | Yes |
| 1913AB-10 | Metric | 8mm | M2.5 X 0.45 | 0.002mm | 0mm | 0.5mm | 0.2mm | 0-100-0 | Flat | ±5µm | ±6µm | — | Yes |
| 1921A-10 | Inch | 3/8″ | 4-48 UNF | 0.001″ | 0″ | 0.1″ | 0.04″ | 0-20-0 | Lug | ±0.001″ | ±0.001″ | Yes | — |
| 1921AB-10 | Inch | 3/8″ | 4-48 UNF | 0.001″ | 0″ | 0.1″ | 0.04″ | 0-20-0 | Flat | ±0.001″ | ±0.001″ | Yes | — |
| 1923A-10 | Inch | 3/8″ | 4-48 UNF | 0.0005″ | 0″ | 0.05″ | 0.02″ | 0-10-0 | Lug | ±0.0005″ | ±0.0005″ | Yes | — |
| 1923AB-10 | Inch | 3/8″ | 4-48 UNF | 0.0005″ | 0″ | 0.05″ | 0.02″ | 0-10-0 | Flat | ±0.0005″ | ±0.0005″ | Yes | — |
| 1925A-10 | Inch | 3/8″ | 4-48 UNF | 0.0001″ | 0″ | 0.025″ | 0.01″ | 0-5-0 | Lug | ±0.0002″ | ±0.0002″ | Yes | — |
| 1925AB-10 | Inch | 3/8″ | 4-48 UNF | 0.0001″ | 0″ | 0.025″ | 0.01″ | 0-5-0 | Flat | ±0.0002″ | ±0.0002″ | Yes | — |
| 1911A-10 |
| 1911AB-10 |
| 1913A-10 |
| 1913AB-10 |
| 1921A-10 |
| 1921AB-10 |
| 1923A-10 |
| 1923AB-10 |
| 1925A-10 |
| 1925AB-10 |
Технические характеристики
| Technology: | Mechanical |
|---|
| Balanced Scale: | Yes |
|---|
| Jeweled Bearing: | Yes |
|---|
| Min Measuring Force: | 0.3N |
|---|
| Max Measuring Force: | 1.8N |
|---|
