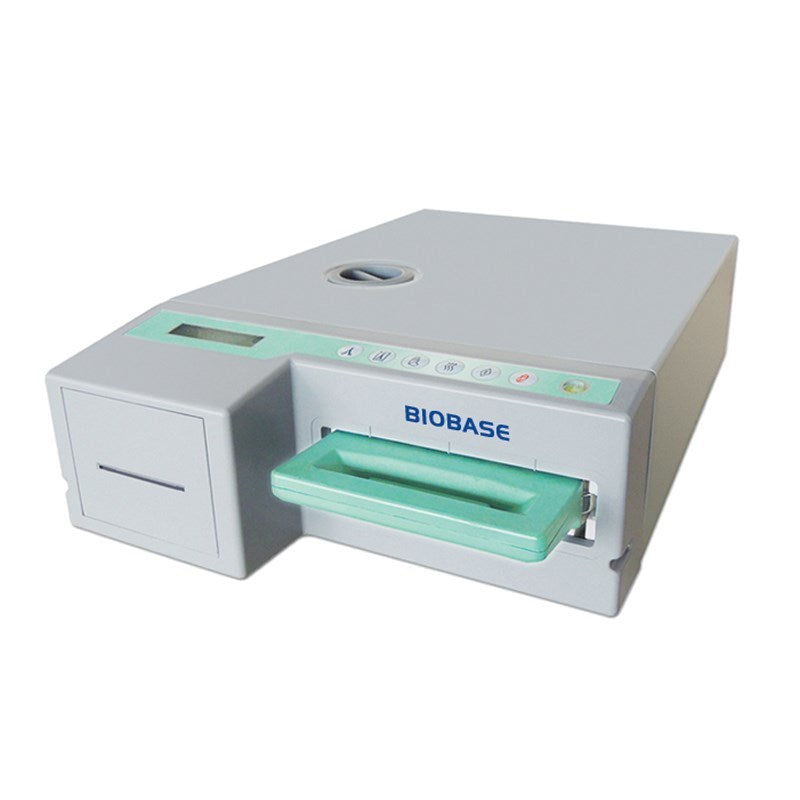

Used for the repaid sterilisation of small instruments in stomatology, ophthalmology, E.N.T. department, gynecology, operating room, etc
Features
- It only takes 6-7 minutes for the shortest sterilisation cycle which can extend service life of the instrument
- Three shortcut keys for sterilisation programs, the sterilisation temperature and time can be set freely
- Alarm for unqualified water and water shortage, the autoclave will stop working when there is a low temperature and low pressure
- Small dimension, light weight, easy to operate, the cassette can be also used for instrument transfer and temporary storage
Schematic Diagram:
The steam generator heats to the optimum temperature when the sterilisation program started. The distilled water is pumped into the generator and converted into steam immediately, then the steam is injected into the cassette which is loaded with instruments to be sterilised. The polluted air in the cassette is exhausted after the steam is injected.
Advantages: Shorter cycle time, higher efficiency
Specifications:
Cat. No.
BKS-2000
BKS-5000
BKS-6000
Capacity
1.8L
5.2L
6.0L
Chamber Size (W*D*H) mm
280*180*38
380*180*78
480*180*78
External Size (W*D*H) mm
570*415*170
580*460*190
Steam Temp
115℃~135℃ (Selectable)
Ambient Temp.
5℃ ~ 40℃
Working Pressure
42KPa ~ 212KPa
Chamber Material
SUS304
Water Tank Volume
3.4L
Standard Accessories
Instrument loading tray*1, Waste water tank*1,
Drain hose*1, Printing paper*2
Power Supply
AC110/220V±10%, 50/60Hz
Package Size (W*D*H) mm
580*580*700
Net Weight (kg)
34
46
Gross Weight (kg)
49
61
Standard Accessories:
Instrument loading tray * 1
Waste water tank * 1
Drain hose * 1
Printing paper * 2
Технические характеристики
Cat. No.
