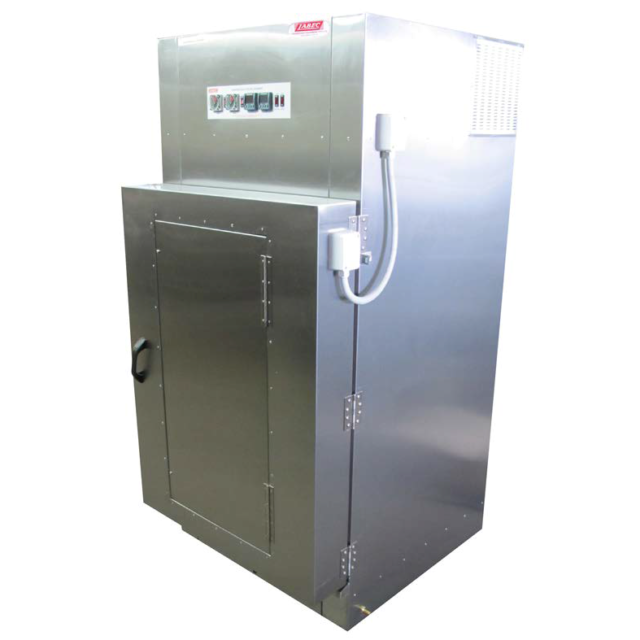

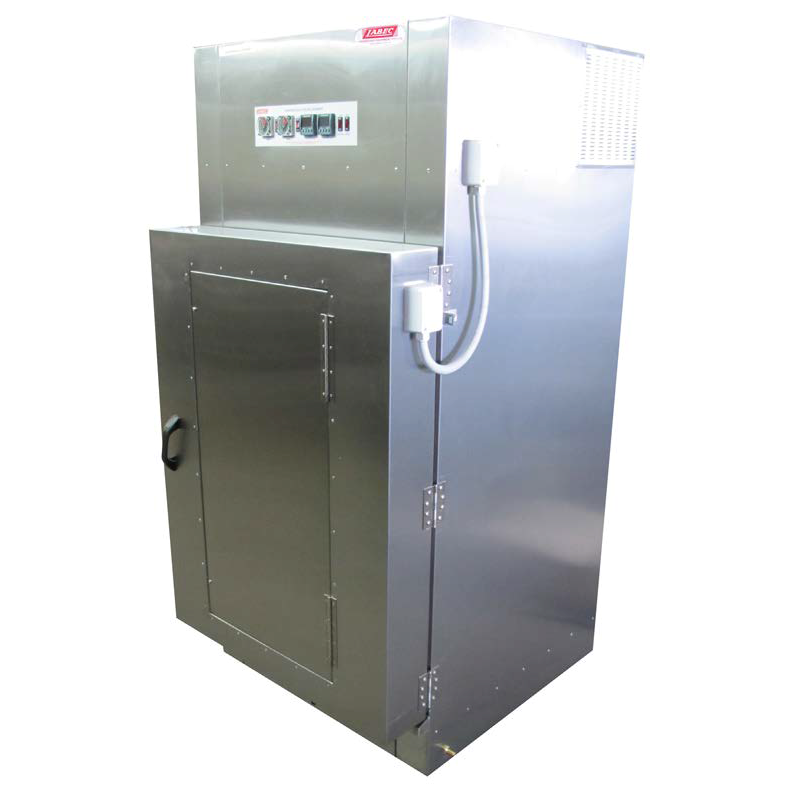

LABEC Plant Growth Chambers with Humidity Control are fitted with internal lights and are manufactured in Australia with high quality stainless steel for easy maintenance and excellent durability. Suitable for applications such as plant germination and culture growth or where refrigeration, heating and diurnal control is required.
Controller — Environmental conditions can be accurately reproduced and controlled with dynamic air flow system and unique heating system. They provide excellent temperature uniformity using a digital microprocessor based PID temperature controller which controls the temperature within the range 10°C Lights OFF / 15°C Lights ON up to +50°C and Day/Night simulation features.
Humidity Control — The humidity can be controlled within the ranges of 10-90% (temperature dependent, see chart below). The Relative Humidity is achieved through an automatic water level inlet.
Data logging — The controller can be connected via RS232/RS485 communication ports which can be connected directly to a data logger or computer to log chamber information. Software is available for programming and monitoring.
Lighting — A range of lighting configurations to suit your applications is available. Lighting can be door lighting, wall lighting, or on each shelf. The shelf lighting provides High light intensity, >,90 micromoles centre of each shelf. Labec chambers can now be supplied with T5 fluorescent lights in standard, marinestar, aquastar or grolux lights for different applications. The T5 lights use electronic ballasts which give a 1/4 more output than the standard T8 tubes.
Options — addition of options such as programmable controllers, touch screen, CO2 channel, lighting, timers and cable access ports are also available to suit requirements.
Features:
- RCD/ ELB (earth leakage breaker)
- Over Temperature Thermostat
- 316 grade Stainless Steel interior
- Stainless Steel exterior
- Lights separated from chamber
- Diurnal control system
- Precise control of temperature & humidity
- Digital indication of internal temperature and set values
- Quiet running CFC free refrigeration system
- Monitoring or cable point access port
- Fully adjustable open wire shelves
- Fitted with castors to allow for easy moving
Specifications:
Product EPGH24
EPGH36
EPGH50
EPGH80
Capacity 160L 300L 500L 820L Internal Dimensions
(H x W x D)
60 x 50 x 50cm
90 x 60 x 50cm
120 x 65 x 65cm
120 x 115 x 65cm
External Dimensions
(H x W x D) 136 x 61 x 80cm
175 x 76 x 80cm
220 x 78 x 92cm
192 x 145 x 92cm
Humidity Control
Digital PID Controller Range 10-90% RH (temperature dependent) Sensor Vaisala
Fluctuation +/- 2% RH
Temperature Control Digital PID Controller
Range +10°C lIghts off / +15°C with lights on to 50°C Accuracy +/- 1°C
Fluctuation +/- 0.2°C Sensor PT 100 ohms
General Construction Heating — Electric element
Refrigerant — R134a (CFC Free)
Interior — 316 Grade Stainless Steel
Exterior — Stainless steel Shelves 2 3 6 Wall Lighting 2 x 18W 2 x 36W 3 x 36W 6 x 36W Options Glass viewing windows, castors, cable entry port, programmable temperature profiler, additional shelves, various lighting configurations to suit your applications (doors, walls, each shelf), data logger, chart recorder. Safety Over temperature alarm, Temperature protection cut off, Earth leakage breaker (ELB) Power 240V/50Hz Weight 102kg 135kg 156kg 195kg
