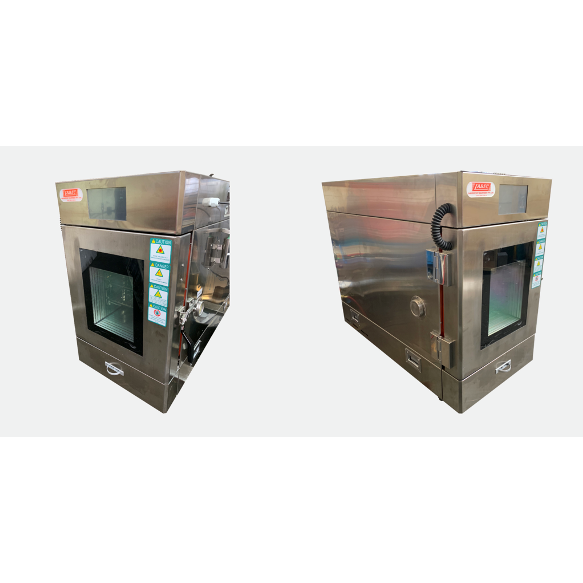

The small temperature and humidity chambers are suitable for testing small parts in laboratories, healthcare, chemical, electronics and textile industries. It provides superior performance over a wide range of applications including pharmaceutical quality assurance and reliability testing, electronic, military, research testing and production processes where accurate and reliable temperature and humidity is required. They come in a 27L bench top model or 80L floor model
- A type: 0 to 100°C
- C type: -40 to 100°C
Specifications:
Product EQHT-30A
EQHT-30C
EQHT-80A
EQHT-80C
Capacity 27L bench top model 27L bench top model
80L floor model 80L floor model
Internal Dimensions
(W x D x H)
30 x 30 x 30cm 40 x 50 x 40cm External Dimensions
(W x D x H)
54 x 107 x 82cm 74 x 110 x 158cm Control PID auto/manual
Maximum 10 programs, 100 cycles repeat. 0-99hr 59min timer Humidity 20-98% RH range, +/- 2.5% RH accuracy, +/- 2.5% RH fluctuation
Temperature A type: 0°C to 100°C range, 0.3°C accuracy, 0.5°C fluctuation
C type: -40°C to 100°C range, 0.3°C accuracy, 0.5°C fluctuation Heating Time 20 to 30°C within 30min, -20 to 100°C within 30min, -40 to 100°C within 60min Cooling Time 20 to 0°C within 20min, 20 to -20°C within 40min, 20 to -40°C within 60min Refrigeration Single stage refrigeration system, hermetic compressor Materials Internal: Stainless Steel 316 gradeInsulation: Rigid polyurethane foam and glass wool
Safety Refrigerator overload relay, refrigerant high pressure switch, porcelain fuse, low water protector, magnetic switch, alarm Power Supply 240V 50Hz 15A 3600W
240V 50Hz 20A 4800W
Power 2400W 3600W Weight 100kg 290kg
