last updated : 2020/08/27
| Code | Description | Budget Price | Ship. weight | Ship. vol. | ||
|---|---|---|---|---|---|---|
| CCABCOAX8DF100 | CABLE, coaxial, 50 Ohm lowloss 8D-FB, dia. 11,1mm, 100m roll | CH 163,00 | 17,2kg | 0,04L | Add | |
| CCABCOAX8DFB50 | CABLE, coaxial, 50 Ohm lowloss 8D-FB, dia. 11,1mm, 50m roll | CH 57,00 | 8,3kg | 0,011664m³ | Add | |
| CCABCOAXNGTANT | (codan 3040) CABLE, coax., RG58, 8m, 2xPL259, 08-01503-008 | CH 47,00 | 0kg | 0 | Add | |
| CCABCOAXRG21310 | CABLE, coaxial, 50 Ohm, RG213/U, diam. 10,3mm, roll of 100m | CH 290,00 | 18,6kg | 0,050625m³ | Add | |
| CCABCOAXRG58100 | CABLE, coaxial, 50 Ohm, RG58C/U, diam. 5mm, roll of 100m | CH 102,00 | 3,9kg | 4,9158L | Add | |
| CCABCOAXRG58EX | CABLE, coaxial, 50 Ohm, RG58/U, 2xUHF str. male conn., 70cm | CH 8,80 | 0kg | 0 | Add | |
| CCABCOAXRG58N | CABLE, coaxial, 50 Ohm, RG58/U, 2xN str. male conn., 70cm | CH 14,00 | 0,42kg | 1,4 L | Add | |
| CCABCOAXRG58UB | CABLE, coaxial, 50 Ohm, RG58/U, 1xUHF male, 1xBNC male, 70cm | CH 8,00 | 0kg | 0 | Add | |

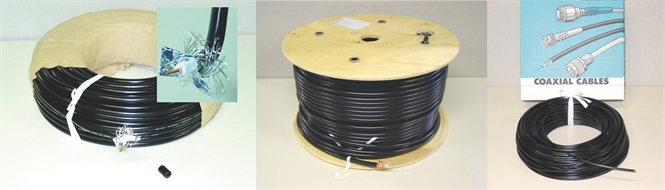

General information
Coaxial cable 8D-FB is a low-loss antenna cable for a fixed-installation VHF, a HF log-per and hi-powered radio installations. It usually comes in 50m rolls.
Coaxial cable RG 213 is an older type, same usage as above. It is more flexible and less fragile, but has more loss. It usually comes in 100m rolls.
Coaxial cable RG 58 is a general HF antenna cable, up to 100 watts. It usually comes in 100m rolls.
Recommended type:
- HF fixed station: 8D-FB / RG58
- HF mobile: RG58
- VHF fixed station: 8D-FB
- VHF mobile: RG58
Specifications
Impedance, all cables: | 50Ω (ohm) |
Coaxial cable 8D-FB: | external diameter 13mm, double-shielded, foam dielectric insulation, ridge wire |
Coaxial cable RG 213: | external diameter 13mm, single copper-braid shield, semi-flexible inner conductor, polyethylene dielectric insulation |
Coaxial cable RG 58: | external diameter 6mm, single braid shield, flexible, polyethylene isolation |
