Измерители высоты тона

Измерители шага винтовой резьбы Mitutoyo идеально подходят для проверки угла нарезки резьбы при производстве винтов и измерения угла нарезки инструмента.

Доставка импортных компонентов по России от 3х недель транспортными компаниями СДЭК, Деловые Линии, Major Express.

Оплата физическими и юридическими лицами безналичным расчетом.

Цена может измениться после запроса у поставщика!

The Mitutoyo screw thread pitch gages are constructed of high-grade stainless steel for reliable and highly accurate thread pitch measurements. Each leaf has the pitch size stamped on it for fast and easy viewing. Locking clamps keep the gages in place while in use or in storage.

Available in Metric, Unified and Whitworth screw pitches
Each thread gage leaf is stamped with pitch size for easier reading
Locking clamp allows for easier use, stable

Order No.:	Product Image:	Units:	Range:	Number of Leaves:	Composition of Leaves:

Order No.:

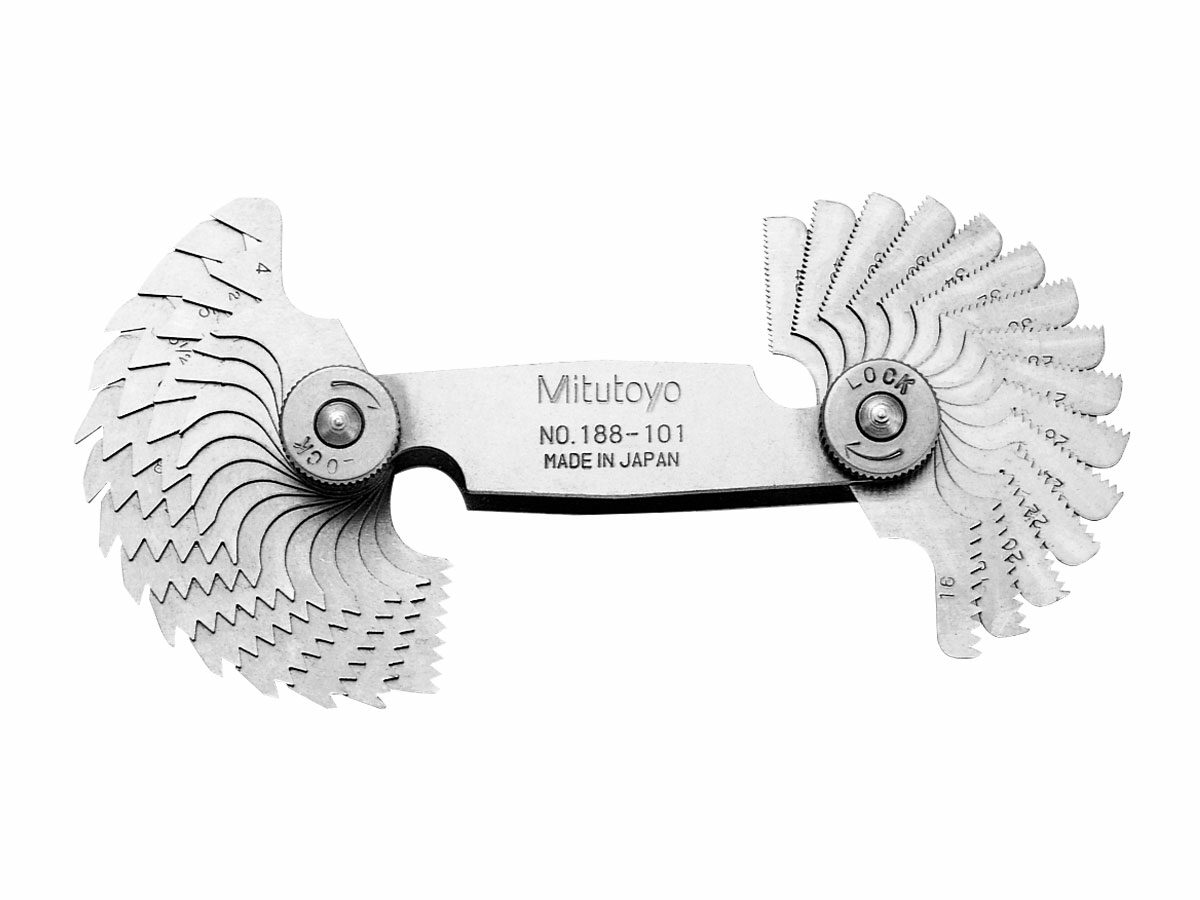

188-101	—	Inch	4 — 42 TPI	30 leaves	4, 41/2, 5, 51/2, 6, 7, 8, 9, 10, 11, 111/2, 12, 13, 14, 15, 16, 18, 20, 22, 24, 26, 27, 28, 30, 32, 34, 36, 38, 40, 42 TPI
188-102		Inch	4 — 42 TPI	28 leaves	4, 41/2, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 16, 18, 19, 20, 22, 24, 25, 26, 28, 30, 32, 34, 36, 40, 48, 60 TPI
188-111		Inch	4 — 42 TPI	30 leaves	4, 41/2, 5, 51/2, 6, 7, 8, 9, 10, 11, 111/2, 12, 13, 14, 15, 16, 18, 20, 22, 24, 26, 27, 28, 30, 32, 34, 36, 38, 40, 42 TPI
188-121	—	Metric	0.4 — 7mm	18 leaves	0.4, 0.5, 0.75, 1, 1.25, 1.5, 1.75, 2, 2.5, 3, 3.5, 4, 4.5, 5, 5.5, 6, 6.5, 7mm
188-122	—	Metric	0.4 — 7mm	21 leaves	0.4, 0.5, 0.7, 0.75, 0.8, 0.9, 1, 1.25, 1.5, 1.75, 2, 2.5, 3, 3.5, 4, 4.5, 5, 5.5, 6, 6.5, 7mm
188-130	—	Metric	0.35 — 6mm	22 leaves	0.35, 0.4, 0.45, 0.5, 0.6, 0.7, 0.75, 0.8, 1, 1.25, 1.5, 1.75, 2, 2.5, 3, 3.5, 4, 4.5, 5, 5.5, 6mm
188-151	—	Inch/Metric	0.4 — 7mm / 4 — 42 TPI	51 leaves	—
188-152	—	Inch/Metric	0.5 — 6mm / 4 — 56 TPI	28 leaves	4, 6, 8, 10, 11, 11-1/2, 12, 13, 16, 20, 28, 32, 40, 56 TPI and 0.50, 0.75, 1.00, 1.25, 1.50, 1.75, 2.00, 2.50, 3.00, 3.50, 4.00, 4.50, 5.00. 6.00 mm
188-153	—	Metric	0.25 — 2.5mm	28 leaves	0.25, 0.30. 0.35, 0.40, 0.45, 0.50, 0.55, 0.60, 0.65, 0.70, 0.75, 0.80, 0.85, 0.90, 1.00, 1.10, 1.20, 1.25, 1.30, 1.40, 1.50, 1.60, 1.70, 1.75, 1.80, 1.90, 2.00. 2.50 mm
950-253	—	Inch	4 — 84 TPI	51 leaves	—
