Features:
- Up to Six-Phase Input on One Unit. Synchronized Measurements Between Two Units
- Wide Current Input Ranges
- Data Storing as Fast as 50 ms (20 Times per Second)
- High Precision and Wide Bandwidth
- Increased Assured-Accuracy Range for High-Precision Measurements
- A Variety of Display Formats
- Display Harmonic Data as Bar Graphs, Vectors, and Lists
- Built-in Printer (Optional)
- A Variety of Interfaces (Optional)
- Integration Function Capable of Handling Rapid Changes in Input Signal
- Other Special Features

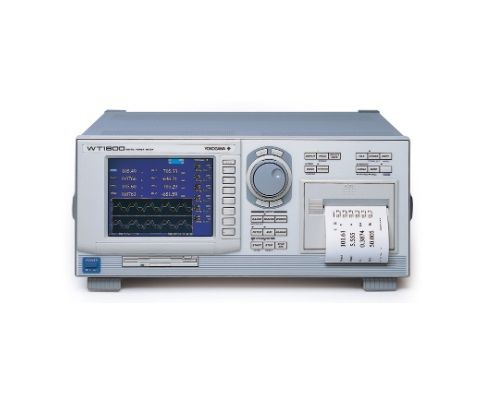

The WT1600 is power meter designed for measurement of extremely small currents in energy-saving equipment, as well as measurement of large currents for evaluating large-sized loads. The WT1600 works with voltages ranging from 1.5 V up to 1000 V, supporting a wide range of applications. Because it can accept signal inputs for up to six phases, a signal WT1600 unit can measure I/O signals on inverters.
Технические характеристики
| Manufacturer | Yokogawa |
|---|---|
| Condition | Used |
