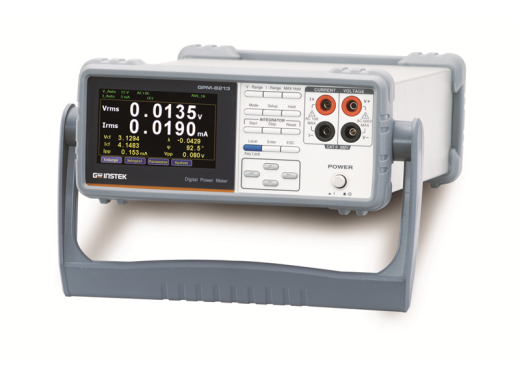

The GPM-8213 from GW Instek is a power meter specifically designed for measurements on DC and AC power supplies. This meter has the ability to analyse 19 different parameters with a high basic accuracy of ±0.1%. The monitor has two display modes with which 4 or 8 of these parameters can be displayed.
The meter has an RS-232C, USB and LAN connection and can be optionally equipped with a GPIB interface. The meter can be used stand-alone for measurements or can also, via one of these interfaces, be connected to a PC to edit programs and store data.
The GPM-8213 provides the optimum measurement support for tests that must comply with IEC 62301/EN 50564 certification. This is included:
- Bandwidth of DC~6kHz
- Minimum current value of 5mA (resolution of 0.1A)
- Power measurement resolutions (1mW for the minimum current/voltage values, 1W for the maximum current/voltage values)
- A crest factor reaching 3 (half range reached 6)
- Measurement for the total harmonic distortion
For larger voltage/current measurements, the GPM-8213 also offers the possibility to connect an external transformer.
Model overview Model GPM-8213 GPM-8310 Bandwidth DC, 45 Hz — 6 kHz >DC, 0.1 Hz — 100 kHz Number of measurement parameters 19 25 Maximum voltage, current 600 Vrms, 20 Arms 600 Vrms, 20 Arms Display 4” TFT LCD 5” TFT LCD Price 830 €830.00 Excl. VAT 1418 €1,418.00 Excl. VAT Specifications Maximum voltage 600 Vrms Maximum current 20 Arms Tested frequency bandwidth DC~6kHz Measurable parameters Voltage (Vdc, Vrms, V+pk, V-pk, VHz)
Current (Idc, Irms, I+pk, I-pk, IHz)
Power (P, P+pk, P-pk)
Device Power (VA)
Reactive Power (VAR)
Power Factor (PF)
Phase Angle (DEG)
Crest Factor (CFV/CFI)
Total Harmonic Distortion (THDV/THDI) Measurement precision ±,0.1% of measurement Power resolution 1mW Display 4′ TFT LCD Connectivity USB (Host/Device), Lan, RS-232C, (Optional GPIB) Dimensions 270 x 110 x 350 mm Weight 2.9 kg
Accessories
The GPM-8213 comes standard with:
- Safety Instruction Sheet
- Power cord
- Test lead GTL-209
- CD (including complete user manual and USB driver)
Options GPIB interface GPM-001 Test Fixture This option makes it possible to directly connect a device to be tested to the 4 measurement terminals of the GPM-8213. GPM-001 Test Fixture 212 €212.00 Excl. VAT Info Add to Cart
