Features:
- 12 Measurement Parameters
- 0.1% Basic Measurement Accuracy
- 7 Test Frequencies: 100Hz-100kHz
- Programmable Test Voltage: 10mV-1V
- Measurement Speeds up to 62/second
- Monitor DUT Voltage and Current
- Large High Resolution Graphic Display
- IEEE and Handler Interfaces, Standard
- Automatic Open/Short Zeroing
- Pass/Fail Binning (8)
- Storage/Recall of 50 Setups
- Measurement Averaging (1-256)
- Measurement Delay (0-10 seconds)
- Programmable Source Impedance
- DC Bias Voltage (0-5V)
- Keypad Lockout
- Easy Operation
- Cable Correction 0-4M
Applications:
- Production Testing of LCR Components
- Component Screening
- Material Testing
- Quality Assurance Testing
- Component Design and Evaluation

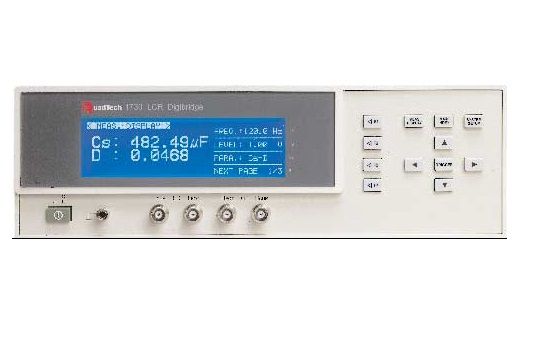

The QuadTech 1730 LCR Digibridge is an easily programmable, microprocessor-based high performance passive component tester with excellent low impedance measurement and fast measurement speeds even at 100/120Hz. It measures 12 different parameters with a basic accuracy of 0.1%. Programmable test frequency, speed, mode and voltage permits great versatility in component and materials testing. Standard IEEE-488 and Handler interfaces provide data transfer and component automation applications for faster production line testing.
Технические характеристики
| Manufacturer | QuadTech |
|---|---|
| Condition | Used |
| Frequency | 100 kHz |
