Features:
- Four quadrant source, sink and measure
- Maximum voltage: ± 210V
- Voltage range: 20mV to 200V
- 0.015% basic accuracy with 6.5 digit resolution
- 0.1µV and 100fA resolution
- Sense terminals for 4 wire operation and guard capabilities
- Powerflex technology achieves full instrument output power across the majority of the voltage range
- Internal memory, up to 100k measurements and 100k steps
- Optional SMU Link allows two SMUs to be linked together for synchronous operation
- Fast measurement speeds up to 200µs (5k/s)

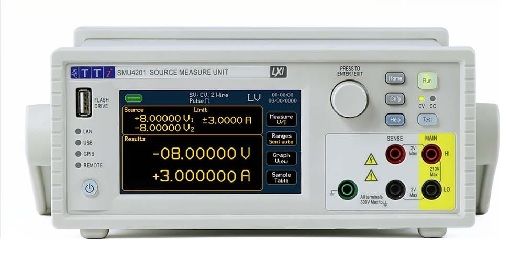

The SMU4000 integrates a fast and agile, high-power four-quadrant voltage / current source with a precise voltage/current meter in a compact, half-rack 2U casing. It is capable of precisely supplying positive and negative voltages, sourcing or sinking power, all while simultaneously measuring both current and voltage for I-V characterization.
With high current and power combined with fast measurements and low glitch auto-ranging speed, it is the ideal solution for a wide variety of applications. The SMU4000 is an all-in-one solution for simplifying test applications such as battery charging/discharging, I-V characterization, semiconductor testing and more.
Технические характеристики
| Manufacturer | Thurlby Thandar Instruments |
|---|---|
| Condition | New |
| Volts | 200 V |
| Amps | 3 A |
| Power | 25 W |
