Источник переменного тока Preen AFV-PLUS-31020

Features:

• Wide Output Power Range: 10kVA~2000kVA
• 0~300V output voltage and 45~65Hz output frequency (opt. 45~500Hz)
• The built-in STEP and RAMP functions are ideal to simulate different types of power line disturbances.
• The SOFT START feature can effectively reduce inrush current caused by motor startup.
• Via the Three Phase Independent Adjustment function, the AFV+ series can deliver each phase voltage differently to
• multiple single-phase DUTs.
• User can simulate phase shift with the optional Phase Angle Control function.
• CE & RoHS certified.
• Optional remote sensing feature is available to improve precision.
• The 7” touch screen shows parameters of voltage, current, frequency, real power, apparent power and sum of each
• phase»s parameters.
• Complete protections include UVP, OVP, OCP, input UVP/OVP, OTP and other 29 protections. The built-in Error Log
• can record up to 255 error messages for easier trouble shooting.

Applications:

• Home Appliance
• /DERUDWRU&HUWLÀFDWLRQ%XUHDX
• Transportation
• Industrial Power Supply
• Electric Vehicles
• IT / SMT Production Line
• Renewable Energy
• Medical Industry
• Motor & Compressor

Specifications:

• 20 kVA
• 300 V
• 166.7 A
• 500 Hz
• 1 Phase

The AFV-PLUS-31020 is a high power programmable AC power source utilizing advanced PWM technology to deliver power with THD 0.5% and up to 2000kVA. The output frequency is 45~65Hz with accuracy of ± 0.02%, and user can select 45~500Hz option to expand the frequency. The AFV+ series is ideal to simulate different region»s voltage and frequency conditions, and can cover applications for home appliance, motor, medical equipment, lighting and EMC laboratory.

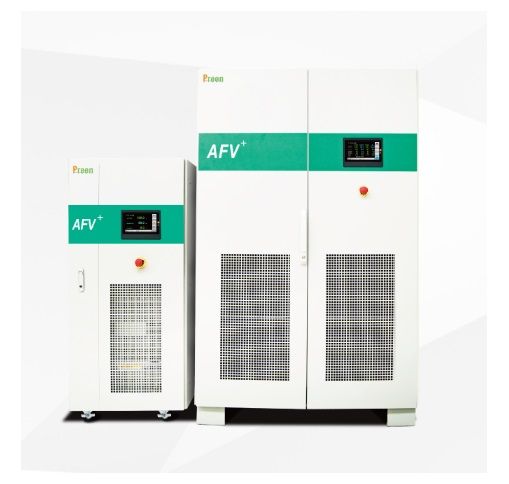

*This image is for representation only.*
