Additional Features:
- Output Voltage Range: 1-150V, 2-300V
- Max Current: 40A/20A
- Single phase, 4 kVA
- Frequency Range: 1 Hz-500 Hz
- Output Power: 4000 Watts
- Output voltage/current real effective value, peak value, DC mean value, and electric power are displayed on the panel
- Achieves less than 0.5% voltage waveform distortion
- 60μs of voltage response speed
- Applicable to GPIB or RS-232C control

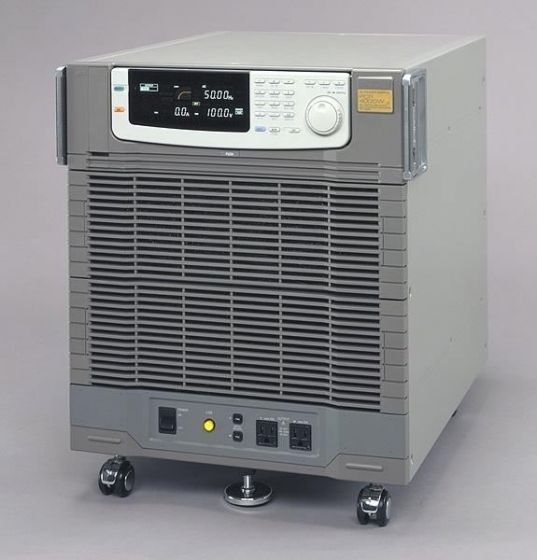

With a primary development concept of improved efficiency and low cost, the PCR4000W, regulated AC power supply, features a balance of performance, function, quality, and cost based on the technology and know-how established with the PCR-L Series of products. Specifically, PWM inverter system was used for the power unit, providing the power supply with improved efficiency (by approximately 75 %), low-input current demand, and a considerably downsized and lightweight package design.
The PCR-W/W2-Series power supply features a wide input range and high-quality, powerful output (as well as a reduction in low-waveform distortion, and the provision of high response speed and low power-factor load) for worldwide application, and is equipped not only with measurement and output capabilities for AC parameters such as RMS value, peak value, power, and power factor, but also with DC output and AC+DC output modes. With these features, the capabilities of the PCR-W/W2-Series power supply go beyond ordinary AC power supply, providing greater convenience.
Технические характеристики
| Manufacturer | Kikusui |
|---|---|
| Condition | Used |
| Amps | 20 A |
| Frequency | 500 Hz |
| Phase | 1 |
| Power (VA) | 4 kVA |
| Volts | 300 V |
