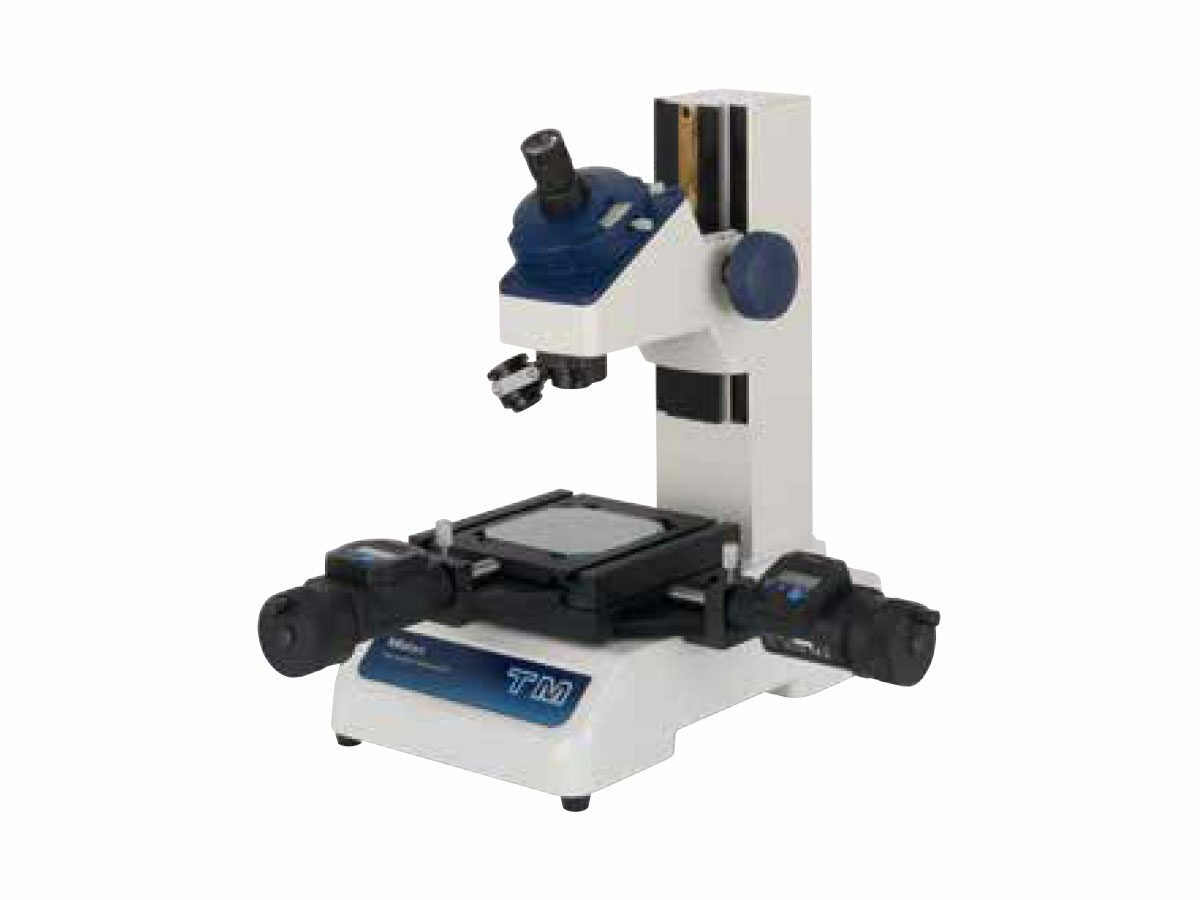

The Mitutoyo TM Series is a microscope well suited for measuring dimensions and angles of machined metals. This series of microscopes has a newly designed LED illuminator with stepless intensity control for enhanced observation. The compact body makes it ideal for use on shop floors with limited space.
• Angle measurement is performed easily by turning the angle scale disc to align the cross-hair reticle with the workpiece image
• Illumination intensity can be adjusted
• Vernier scale mounted outside the eyepiece enables simple angle measurement
• Optional reticles give the ability to set reference points to perform quick comparisons
• Includes standard accessories which create an overall magnification of 30X
• Magnifications can be changed from 20 – 200X by using optional objectives and/or eyepieces
• Digimatic micrometer heads can output data to QM Data 2D processing module for measurements such as radii, diameters and point-to-point measurements
• Models that include Digimatic micrometer heads offer high accuracy measurement and increases ease of use
• 4” x 2” or 2” x 2” stage travel is available
| Order No.: | Product Image: | Model: | Microscope Head Maximum Height of Work Piece: | Stage Measuring Range: | Table Size: | Usable area of stage glass: | Linear Measurement Method: | Resolution: | Mic head travel: | Accessories: | |
|---|
| 176-820A | — | TM-A505B | 4.53″ / 115mm | 2 x 2″ / 50 x 50mm | 6 x 6 / 152 x 152 | 3.8 x 3.8″ / 96 x 96mm | Micrometer Heads included | 0.00005″ / 0.001mm | 2″ / 0.001mm | — |
| 176-821A | — | TM-A1005B | 4.21″ / 107mm | 4 x 2″ / 100 x 50mm | 9.44 x 6 / 240 x 152 | 6 x 3.8″ / 154 x 96mm | Micrometer Heads included | 0.00005″ / 0.001mm | 2″ / 0.001mm | — |
| 176-818A |  | TM-505B | 4.53″ / 115mm | 2 x 2″ / 50 x 50mm | 6 x 6 / 152 x 152 | 3.8 x 3.8″ / 96 x 96mm | Micrometer Heads Optional | — | — | — |
| 176-819A | — | TM-1005B | 4.21″ / 107mm | 4 x 2″ / 100 x 50mm | 9.44 x 6 / 240 x 152 | 6 x 3.8″ / 154 x 96mm | Micrometer Heads Optional | — | — | — |
| 176-820A |
| 176-821A |
| 176-818A |
| 176-819A |
Технические характеристики
| Objective Lens: | Standard Accessory 2x, options 5x, 10x |
|---|
| Power Supply: | 120V AC, 50/60Hz |
|---|
