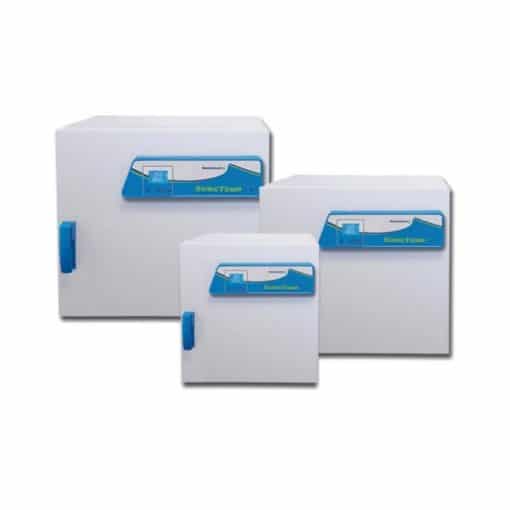

Product Description Precision temperature control up to 75C Dual-Convection technology, excellent uniformity and recovery Includes SureCheck temperature logger and software Stainless steel chamber with internal power outlet The new SureTemp Incubator series provides the highest level of temperature control with uniformity and stability levels that are unmatched by competitive models in the same class. Each incubator is equipped with the SureCheck data logging system for verification of chamber temperature. The SureCheck system records temperature data points as often as every 60 seconds and stores this information on a flash drive. The data can then be viewed and saved using the included the SureCheck software. The recorded data can also be used to plot temperature points on a graph or exported to a spread sheet program for verification or storage/record keeping. Unlike other laboratory incubators, the SureTemp series offers Dual-Convection technology, allowing users to choose between mechanical convection mode* (for exceptional temperature uniformity) or gravity convection mode* (for longer incubations where airborn contamination or drying of samples may be an issue). The heating elements are strategically located on multiple sides of the chamber and contents can be viewed with the separate inner glass door without disrupting the temperature environment. * Mechanical Convection: Incorporates optimally positioned heating elements in conjunction with an internal chamber fan to control the internal temperatue. Gravity Convection: Eliminates any airflow from the chamber, relying solely on the heating elements and gravity to control the internal temperature. Technical Specifications Temperature Range Ambient +5 to 75C Temperature Accuracy ±,0.25C Temperature Uniformity ±,0.25C Temperature Increments 0.1C Temperature Stability 0.1C Timer 1 min. to 48 hours or continuous Chamber Stainless Steel (316) Electrical 120V or 230V 50-60Hz Power Consumption 40L: 420W / 70L: 520W / 130L: 670W H2505-40 Interior Dimensions 13.7 x 13.7 x 13.7 in. / 35 x 35 x 35 cm Exterior Dimensions 22.4 x 23.3 x 22.8 in. / 57 x 59.2 x 58 cm Weight 42 kg / 95 lbs H2505-70 Interior Dimensions 17.7 x 13.7 x 17.7 in. / 45 x 35 x 45 cm Exterior Dimensions 26.4 x 23.3 x 26.8 in. / 67 x 59.2 x 68 cm Weight 62 kg / 136.5 lbs H2505-130 Interior Dimensions 21.7 x 17.7 x 21.7 in. / 55 x 45 x 55 cm Exterior Dimensions 30.3 x 27.2 x 30.7 in. / 77 x 69.2 x 78 cm Weight 70kg / 154.4 lbs
Технические характеристики
Technical Specifications
Temperature Range | Ambient +5° to 75°C | |
Temperature Accuracy | ±0.25°C | |
Temperature Uniformity | ±0.25°C | |
Temperature Increments | 0.1°C | |
Temperature Stability | 0.1°C | |
Timer | 1 min. to 48 hours or continuous | |
Chamber | Stainless Steel (316) | |
Electrical | 120V or 230V 50-60Hz | |
Power Consumption | 40L: 420W / 70L: 520W / 130L: 670W | |
H2505-40 | ||
Interior Dimensions | 13.7 x 13.7 x 13.7 in. / 35 x 35 x 35 cm | |
Exterior Dimensions | 22.4 x 23.3 x 22.8 in. / 57 x 59.2 x 58 cm | |
Weight | 42 kg / 95 lbs | |
H2505-70 | ||
Interior Dimensions | 17.7 x 13.7 x 17.7 in. / 45 x 35 x 45 cm | |
Exterior Dimensions | 26.4 x 23.3 x 26.8 in. / 67 x 59.2 x 68 cm | |
Weight | 62 kg / 136.5 lbs | |
H2505-130 | ||
Interior Dimensions | 21.7 x 17.7 x 21.7 in. / 55 x 45 x 55 cm | |
Exterior Dimensions | 30.3 x 27.2 x 30.7 in. / 77 x 69.2 x 78 cm | |
Weight | 70kg / 154.4 lbs |
