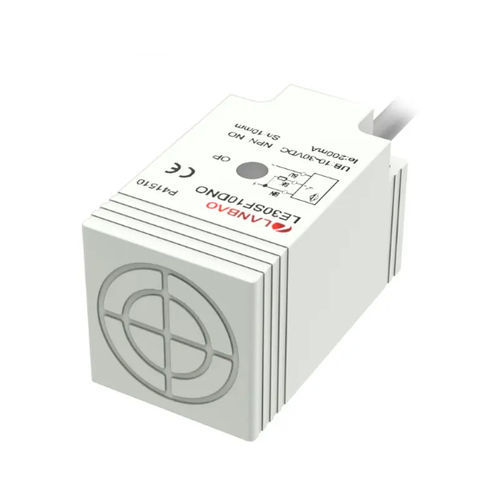

LE30 series plastic square inductive proximity sensor adopts PBT shell material, economical price, good water resistance. The detection distance of the fulsh sensor can be reached 10mm, the detection distance of the non-fulsh sensor can be reached 15mm, and the repetition accuracy can reach 3%,high detection accuracy.The diameter specification is 30*30*53mm and 40*40*53mm. The sensor supply voltage equipped with 2m PVC cable.Normally open or close output mode, IP67, CE certificates. Lanbao AC2 wire output inductive proximity sensor uses the mutual inductance principle of metal conductor and alternating current to detect metal objects in a non-contact way, ensuring the integrity of the detected objects. The LE30 and LE40 series sensor housing is made of PBT, which provides excellent mechanical strength, temperature tolerance, chemical resistance and oil resistance, maintaining stable output even in harsh industrial environments, and is suitable for most automation applications. Its high cost performance, suitable for application in the price sensitive automation industry. Product Features > Non contact detection, safe and reliable, > ASIC design, > Perfect choice for metallic targets detection, > Housing size: 30 *30 *53mm,40 *40*53mm > Housing material: PBT> Output: AC 2wires > Connection: cable > Mounting: Flush，Non-flush > Supply voltage: 20…250VAC > Switching frequency: 20 HZ > Load current: ≤300mA
Технические характеристики
CharacteristicsTechnologyinductive, mechanicalShapesquareSupply voltageACMountingflush, non-flushMaterialplastic, PVCProtection levelIP67Other characteristicsnon-contactMeasuring range
Min.: 10 mm (0.39 in)
Max.: 20 mm (0.79 in)
Process temperature
Min.: -25 °C (-13 °F)
Max.: 70 °C (158 °F)
