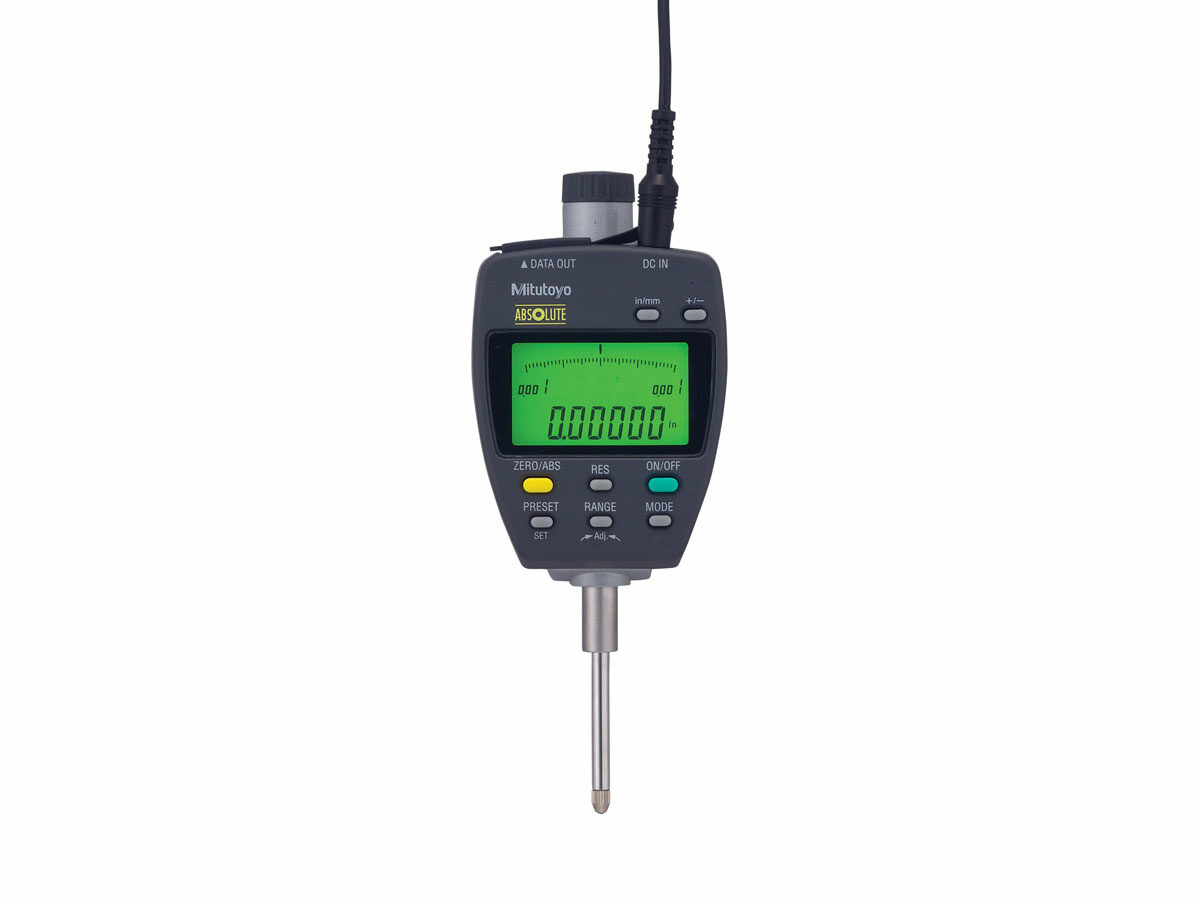

The Mitutoyo ABS ID-F Series digital indicator features a back-lit, easy-to-read LCD screen that changes from green to red when user-defined tolerances are exceeded. This allows Go/No-Go judgments much faster and easier without sacrificing accuracy or reliability. The ID-F indicator has six user-selectable resolutions with a maximum resolution of 0.001mm/.0005” and an accuracy of +/ 0.003mm/.00012”. An integrated analog bar indicator handles upper and lower limit approaching and zero approaching.
- Available in Metric and Inch/Metric models
- Inch Metric model ranges: 0-25.4mm/0-1”, 0-50.8mm/0-2”
- Metric only model ranges: 0-25mm and 0-50mm
- Available with SPC output capabilities
- Go/No-Go judgements are performed by setting the upper and lower tolerances, screen turns from green to red when a tolerance is exceeded
- ABSOLUTE (ABS) linear scale eliminates the need for setting the origin point every time the micrometer is powered on
- Origin reset is not required even when data is re-displayed after disappearance due to insufficient illumination during use
- SPC output function allows for easier, faster data management in real time
- Functions include: Origin set/preset, zero-set, Go/No-Go judgement, max/min value hold, analog bar, runout measurement, resolution switching, counting direction switching, power On/Off, data output and inch/mm conversion (on inch/metric models only)
- Alarm: Low voltage, counting value composition error, over-flow error and tolerance limit setting error
- Unlimited response speed eliminates over-speed errors
- Sealed housing meets IP30 rating for dust and water protection
- Supplied in a fitted plastic case
| Order No.: | Product Image: | Min Range: | Max Range: | Resolution: | Accuracy: | Stem diameter: | Thread type: | Measuring Force: | |
|---|
| 543-551A | — | 0mm | 25mm | 0.001, 0.01mm | ±0.003mm | 8mm | M2.5 X 0.45 | 1.8 or lessN |
| 543-552A | — | 0″ / 0mm | 1″ / 25.4mm | .0001, .0005, .00005, .001″ / 0.001, 0.01mm | ±.00012″ | 3/8″ | 4-48 UNF | 1.8 or lessN |
| 543-557A | — | 0mm | 50mm | 0.001, 0.01mm | ±0.003mm | 8mm | M2.5 X 0.45 | 2.3 or lessN |
| 543-558A |  | 0″ / 0mm | 2″ / 50.8mm | .0001, .0005, .00005, .001″ / 0.001, 0.01mm | ±.00012″ | 3/8″ | 4-48 UNF | 2.3 or lessN |
| 543-551A |
| 543-552A |
| 543-557A |
| 543-558A |
Технические характеристики
| Technology: | Digimatic |
|---|
| Selectable resolution: | Yes |
|---|
| Back Type: | Flat Back |
|---|
| SPC Output: | Yes |
|---|
| Display: | LCD |
|---|
| Length Standard: | ABSOLUTE electrostatic capacitance type linear encoder |
|---|
| Max Response Speed: | Unlimited |
|---|
| Power Supply: | AC Adapter |
|---|
| Required Accessories: | — |
|---|
| Optional Accessories: | 02ACA773, 264-504-5A, 540774, 543-004-1, 936937, 965014 |
|---|
