Индикатор функции выходного сигнала ABSOLUTE Digimatic ID-C

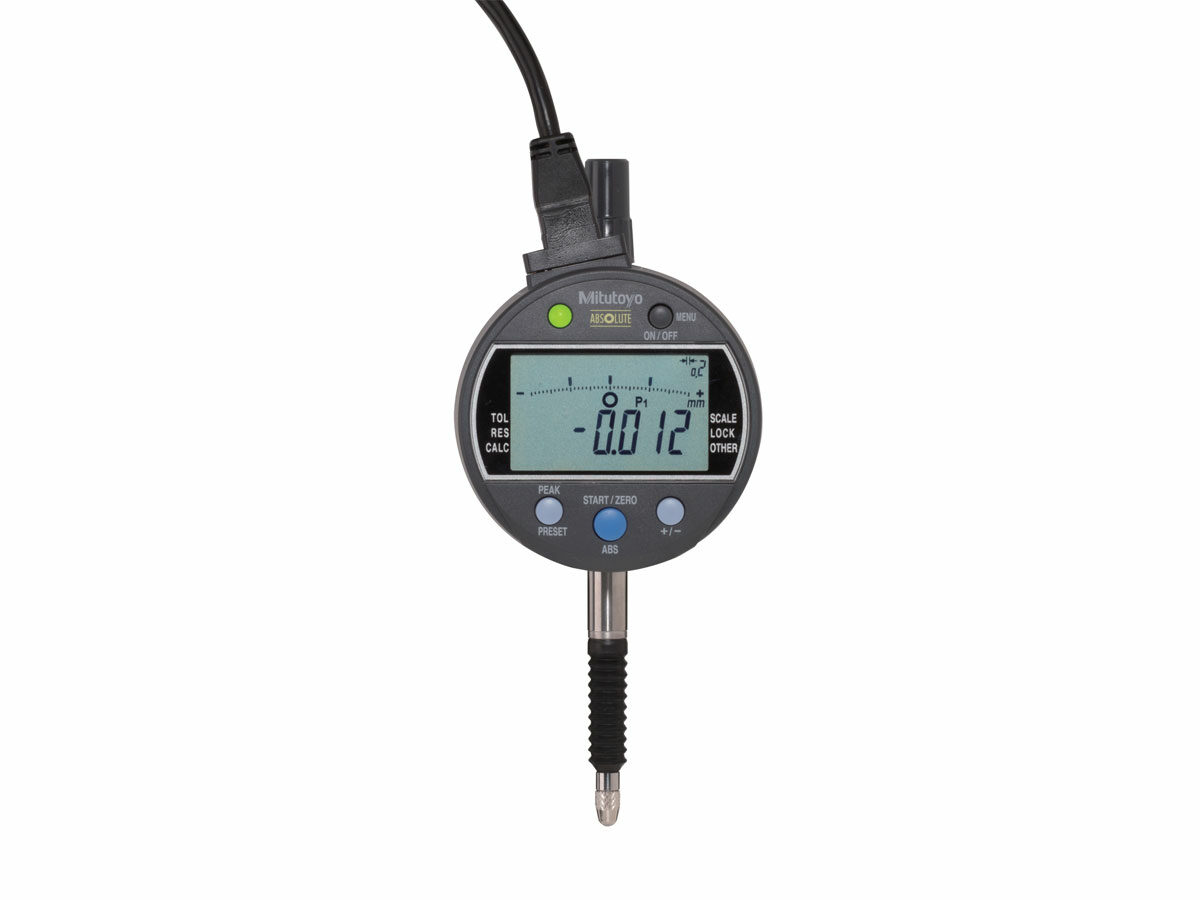

The Mitutoyo ABS ID-C signal output digital indicator has a maximum/minimum value holding function to perform Go/No-Go judgements against the peak values set. The judgement is performed by calculating the measurement data obtained instead of through a mechanical or electrical contact which provides better reliability. The judgement is indicated by green and red LEDs and “&lt,, O, &gt,” signs on the LCD allowing the signal to be outputted to an external device such as a sequencer through the NPN open-collector.

• Available in Metric and Inch/Metric models
• Available with SPC output capabilities
• The high-speed detector measures 100 times per second
• Signal can be outputted to an external device
• Analog bar provides easy-to-read values when scanning for Max, Min and TIR values
• Go/No-Go judgements are performed by setting the upper and lower tolerances
• ABSOLUTE (ABS) linear scale eliminates the need for setting the origin point every time the micrometer is powered on
• Origin reset is not required even when data is re-displayed after disappearance due to insufficient illumination during use
• SPC output function allows for quick and easy data management in real time
• Functions include Data output, remote control, origin set, zero-set, Go/No-Go judgement, analog bar, fast measuring frequency, peak detection, calculation, counting direction switching, power On/Off, data output and inch/mm conversion (on inch/metric models only)
• Alarm: Low voltage, counting value composition error, over-flow error and tolerance limit setting error
• Unlimited response speed eliminates over-speed errors
• IP54 for protection resists dust and contaminants from machine shop environments
• Supplied in a fitted plastic case
