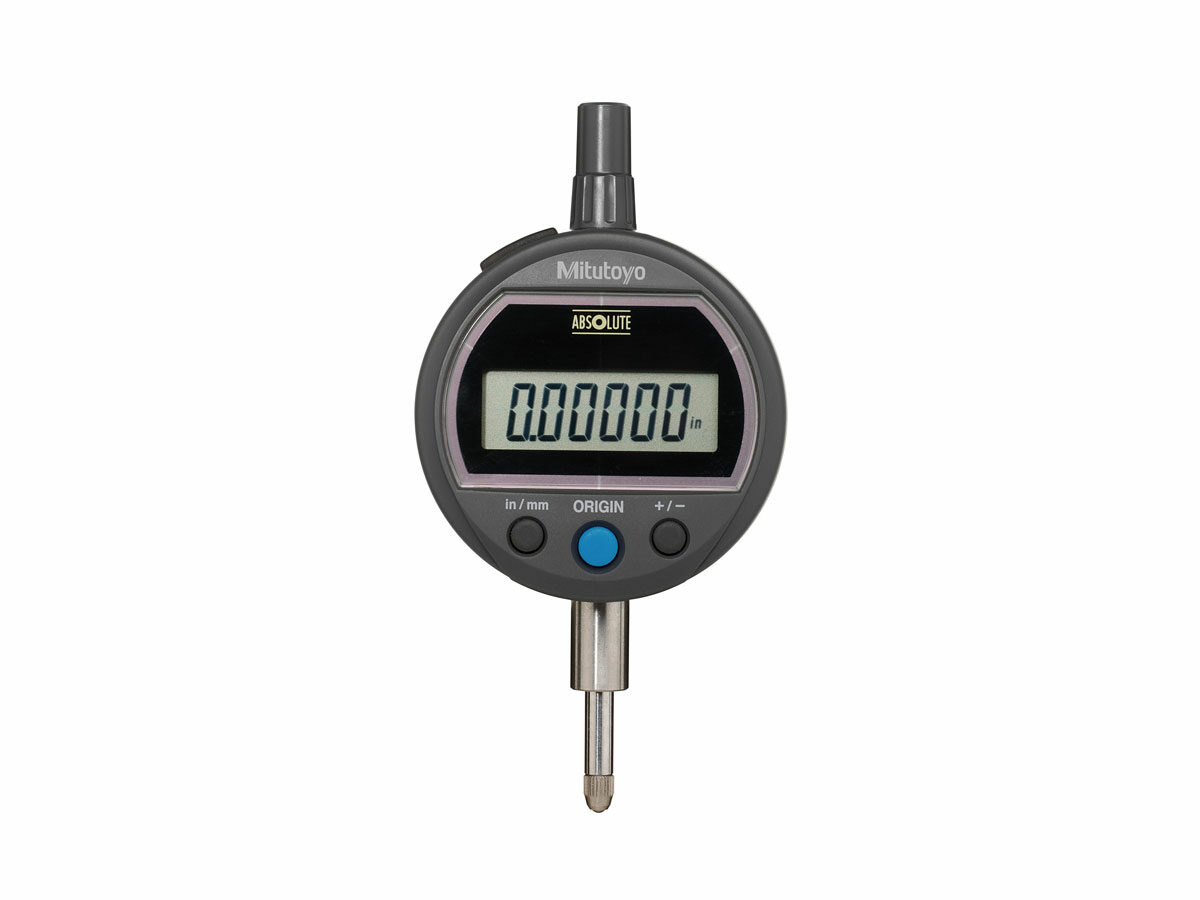

Индикатор ABSOLUTE Solar Digimatic ID-S

Индикаторы Mitutoyo ABSOLUTE Digimatic с питанием от солнечных батарей очень точны и просты в использовании, при этом исключается необходимость в батарее. Измерения отображаются на ударопрочном ЖК-дисплее.

Доставка импортных компонентов по России от 3х недель транспортными компаниями СДЭК, Деловые Линии, Major Express.
Оплата физическими и юридическими лицами безналичным расчетом.
Цена может измениться после запроса у поставщика!

The Mitutoyo ABS digital ID-S digital indicators provide up to a 12.7mm/.5” range in a compact design that is easy to use and read. Large push buttons provide direct, easy access to all of the indictor»s functions, and readings are shown on a large 9mm LCD display. The ABSOLUTE sensor automatically restores the last origin position when the indicator is turned on, allowing for quick-start operation which is useful in multipoint measurements. The solar power source is ready for use from 40 lux illumination and a super capacitor maintains a reserve of about 3.5 hours under low light conditions.

  • Similar in size to standard Series 2 dial indicators
  • Available in Metric and Inch/Metric models
  • Available with or without SPC output capabilities
  • Solar power and battery backup allows for reliable, longer use in any location
  • Solar panel is hard-coated for increased durability
  • ABSOLUTE (ABS) linear scale eliminates the need for setting the origin point every time the micrometer is powered on
  • Origin reset is not required even when data is re-displayed after disappearance due to insufficient illumination during use
  • SPC output function allows for fast and easy data management in real time
  • Functions include Origin Set, Counting Direction Switching and inch/mm conversion (on inch/metric models only)
  • Unlimited response speed eliminates over-speed errors
  • IP42 for protection against objects greater than 1mm and water
  • Supplied in a fitted plastic case

Order No.:Product Image:Units:Min Range:Max Range:Resolution:Accuracy:Stem diameter:Thread type:Back Type:Optional Accessories:ANSI/AGD type:ISO/JIS type:

Order No.:

543-500Metric0mm12.7mm0.001mm±0.003mm8mmM2.5 X 0.45Lug BackYes
543-500BMetric0mm12.7mm0.001mm±0.003mm8mmM2.5 X 0.45Flat BackYes
543-501Metric, Inch0″ / 0mm.5″ / 12.7mm.00005″ / 0.001mm±.0001″ / ±0.003mm8mmM2.5 X 0.45Lug BackYes
543-501BMetric, Inch0″ / 0mm.5″ / 12.7mm.00005″ / 0.001mm±.0001″ / ±0.003mm8mmM2.5 X 0.45Flat BackYes
543-502Metric, Inch0″ / 0mm.5″ / 12.7mm.00005″ / 0.001mm±.0001″ / ±0.003mm3/8″4-48 UNFLug BackYes
543-502BMetric, Inch0″ / 0mm.5″ / 12.7mm.00005″ / 0.001mm±.0001″ / ±0.003mm3/8″4-48 UNFFlat BackYes
543-505Metric0mm12.7mm0.01mm±0.02mm8mmM2.5 X 0.45Lug BackYes
543-505BMetric0mm12.7mm0.01mm±0.02mm8mmM2.5 X 0.45Flat BackYes
543-506Metric, Inch0″ / 0mm.5″ / 12.7mm.0005″ / 0.01mm±.001″ / ±0.02mm8mmM2.5 X 0.45Lug BackYes
543-506BMetric, Inch0″ / 0mm.5″ / 12.7mm.0005″ / 0.01mm±.001″ / ±0.02mm8mmM2.5 X 0.45Flat BackYes
543-507Metric, Inch0″ / 0mm.5″ / 12.7mm.0005″ / 0.01mm±.001″ / ±0.02mm3/8″4-48 UNFLug BackYes
543-507BMetric, Inch0″ / 0mm.5″ / 12.7mm.0005″ / 0.01mm±.001″ / ±0.02mm3/8″4-48 UNFFlat BackYes

543-500
543-500B
543-501
543-501B
543-502
543-502B
543-505
543-505B
543-506
543-506B
543-507
543-507B

Технические характеристики

Technology:Digimatic
IP Rating:IP42
SPC Output:Yes
Display:LCD
Length Standard:ABSOLUTE electrostatic capacitance type linear encoder
Max Response Speed:Unlimited
Battery:Solar
Measuring Force:1.5 or lessN
