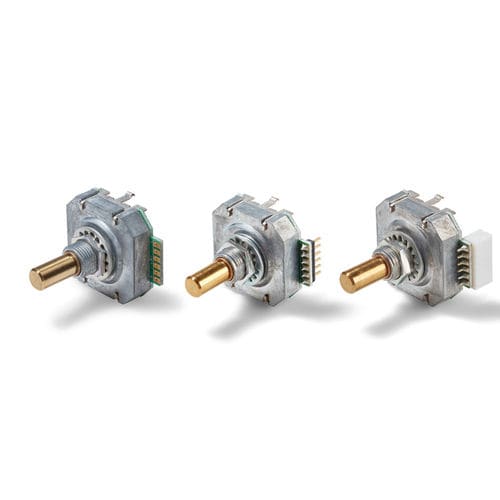

The compact MRX50 panel encoders with 50 ppr. prove their precision and quality even after many hundreds of thousands of operations and are customizable on request The panel encoder MRX50 is, in the sum of its characteristics, out of competition. This product design with this fine-stepped 50 detents and push button even under increased environmental requirements (IP65) cannot be found a second time. The robust and precise panel encoder ensures, even after many hundreds of thousands of operations, the largely unchanged quality of its haptic properties, such as the detent and the shaft play. This was confirmed to us by customers who have undergone this sensor comprehensive testing and have opted for the MRX50. This makes the manual encoder the first choice when special emphasis is placed on longevity with consistent quality. MEGATRON customizes the panel encoders on customer request.
Технические характеристики
CharacteristicsTypeincrementalTechnologyopticalConstructionsolid-shaft, panel-mountedOutput signaldigitalSupply voltage5 VDCMaterialaluminum, stainless steelProtection levelIP65, IP40Applicationsindustrial, for OEMOther characteristicscompact, high-resolution, with push button, manual settingFlange size
9 mm (0 in)
Max.: 9 mm (0 in)
Housing diameter
25 mm (1 in)
Max.: 25 mm (1 in)
Shaft diameter
6 mm (0 in)
Length
10 mm (0.394 in)
Max.: 10 mm (0.394 in)
Output frequency
100 Hz
Max.: 100 Hz
Process temperature
Max.: 60 °C (140 °F)
Min.: -20 °C (-4 °F)
