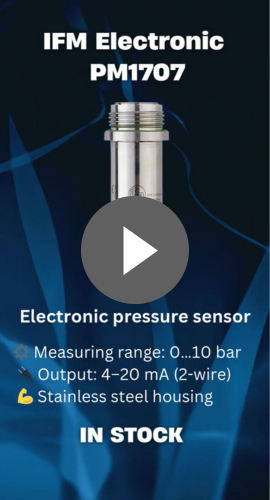

IFM PM1707 is a pressure switch with a stainless steel housing and a diaphragm. It features adjustable pressure settings, adjustable hysteresis, and a wide temperature range. A digital display is included for monitoring and adjustment.
This pressure sensor is suitable for use in various industries and applications, including water and wastewater treatment, food and beverage processing, and chemical processing. It can be used with viscous media, liquids with suspended particles, and liquid or gaseous media.
Main advantages:
- Robust stainless steel housing
- Reliable diaphragm
- Wide range of adjustable pressure settings
- Adjustable hysteresis
- Wide temperature range
- Digital display
- Hygienic design
- Resistant to cleaning with aggressive detergents under high pressure
SPECIFICATIONS:
- Measuring range: -0.05…1 bar, -50…1000 mbar, -0.73…14.5 psi , -5…100 kPa
- Process connection: connection G 1 external thread Aseptoflex Vario-threaded
- Medium temperature: [°C] -25…125; (150 max. 1h)
- Max load: 700; (Ub = 24 V; (Ub — 9 V) / 21.5 mA)
- Degree of protection: IP 67; IP68; IP 69K
- Weight: 0.314 kg
