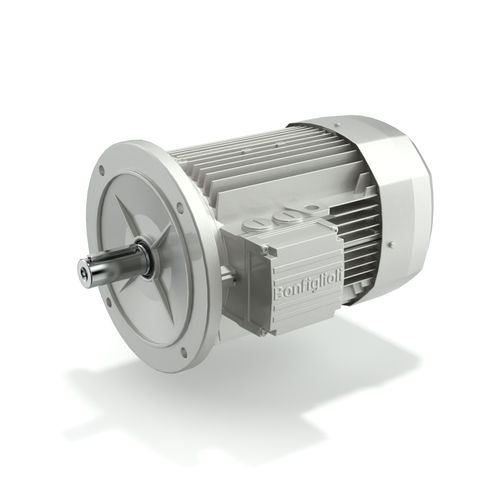

BX Series asynchronous motors with aluminum frames are the right solution for a wide range of general purpose industrial applications. Both the IEC and Compact motor are available in IE3 efficiency classes according to the international standard IEC 60034-30. Furthermore, Bonfiglioli’s e-motors can be equipped with several options: protection class up to IP 56, tropicalized, corrosion-resistant paint, and anti-condensation heaters. Moreover, the BN/M and BX/MX motor Series are also able available in the BrakeMotor version with a selection of AC or DC brakes. To maximize our e-motor flexibility, all of them can be controlled with inverters. Key benefits — Reduced operating cost — Energy saving — Compliant to all the MEPS — Complete (Gearbox + Motor) Solution — Control flexibility — Global motor (can be utilized in most of the markets) Degree of protection Standard IP55 Standard for brake motors IP54 Conformity Efficiency — IEC 60034-30:2008 Low Voltage Directive — 2006/95/EC Electromagnetic Compatibility Directive — 2006/95/EC Power range Available voltages include @50 Hz 230/400 290/500 400/690 290/500 @60 Hz 230/460 330/575 265/460 460/800 Mounting options IM B3 IM B5 IM B14
Технические характеристики
CharacteristicsAC/DCthree-phaseTypeasynchronousVoltage 400V, 230 V, 690 VProtection classIP55Configurationaluminum-frameNumber of poles4-poleOther characteristicsreversible, high-efficiency, IE3Power
Max.: 22,000 W (29.912 hp)
Min.: 750 W (1.02 hp)
