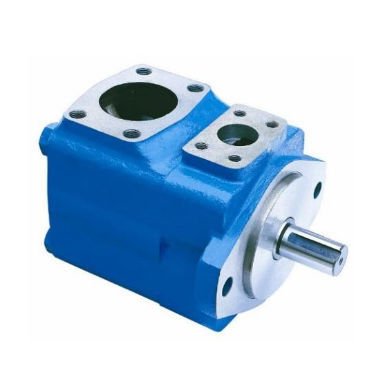

Vane pump — single. BSP thread. Smooth shaft. 22,7 L/min — By default, the direction of rotation is right, but can be changed to the left as desired. 100% interchangeable with Vickers wing pump.
Технические характеристики
CharacteristicsTyperotary vaneOperationhydraulically-operatedMaterialcast ironApplicationsfor industrial applicationsOther characteristicssingle-stagePressure
Max.: 172 bar (2,495 psi)
Min.: 0 bar (0 psi)
Flow rate
Max.: 98 l/min (25.89 us gal/min)
Min.: 13.6 l/min (3.59 us gal/min)
Speed
Max.: 4,800 rpm (30,159 rad.min-1)
Min.: 2,400 rpm (15,080 rad.min-1)
Fluid temperature
38 °C (100 °F)
Power
Max.: 29.1 kW (39.6 hp)
Min.: 5.2 kW (7.1 hp)
