HTFLEX3003 HT Instruments Clamp Meter

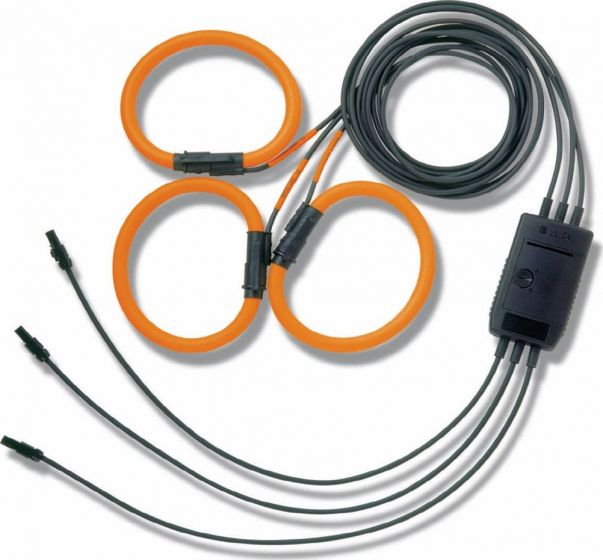

HT Instruments HTFLEX3003 TRMS Flexible Clamp Meter 300-3000A AC with External Driver
Features:
- Set of 3 flexible clamps 0 300 — 0 3000 A AC — Diameter 174mm — with external driver
- Set of 3 flexible clamps
- Flexible clamp with 174mm internal diameter
- 300 and 3000A selectable ranges
- Power supply by external adapter
- Accuracy: ± 1.0% Reading
- Flexible insulated Length: 610mm
- Safety according to IEC/EN61010-1, CAT III 1000V
- Hypertac output connector
Standards
- CE Mark
- EMC 2004/108/CE Directive
- LVD 2006/95/CE Directive
HTFLEX3003 transducer requires two 1.5V type AA MN1500 LR6 alkaline batteries for operation. The battery compartment is accessed from the rear of the electronics enclosure. HTFLEX3003 transducer and interconnection cables use double insulation to protect the operator from possible hazardous potentials of the bus. Make sure the electronics package is well away from the bus. Each current probe is rated for Installation CAT III, Pollution Degree 2. The maximum voltage to earth rating for the transducer and cable is 1000V~. The maximum voltage to earth rating for the electronics enclosure is 30V~.
Технические характеристики
| Manufacturer | HT Instruments |
|---|---|
| Condition | New |
| Amps | 3 kA |
| Volts | 1 kV |
