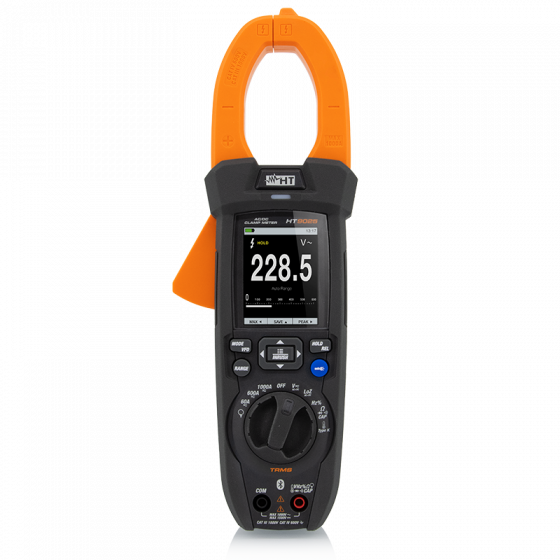

HT9025 HT Instruments Clamp Meter

HT9025 AC / DC current clamp with DATA LOGGER function

Features:

• HT9025 has been designed to measure AC/DC current up to 1000A, DC voltage up to 1500V and AC voltage up to 1000V in TRMS reaching CAT IV 600V and CAT III 1000V in compliance with safety standard IEC/ EN61010-1. The clamp is provided with a display with 6000 measuring spots with backlight and bargraph to allow for a simple reading even in poorly lit environments. HT9025 also measures Resistance, Frequency, Capacity and Temperature with K-type probe.

Specifications:

• Functions
• TRMS
• Current measuring range 1000A
• AC/DC current AC+DC
• AC/DC voltage 1000VAC/1500VDC
• Leakage current with optional clamp meter External pliers
• Frequency
• Resistance and continuity test with buzzer
• Capacity
• Diode test
• Duty Cycle (%)
• Temperature with K-type probe
• AC/DC current External clamp transducer
• Inrush current measurement (INRUSH)
• Measurement category CAT IV 600V CAT III 1000V
• Maximum diameter for clamp 40mm
• Measuring counts 6000
• Backlight
• Bargraph
• Autorange
• Auto power off
• Detection of AC voltage without contact
• Data HOLD function
• MIN/MAX function
• Relative measurement
• Colour LCD display
• Datalogger and Graph
• Memory for data saving
• Power supply LI-ION battery
• Size (LxWx H) (mm) 280x100x50
• Weight in grams (batteries included) 505

Guidelines

• IEC/EN61010-1
