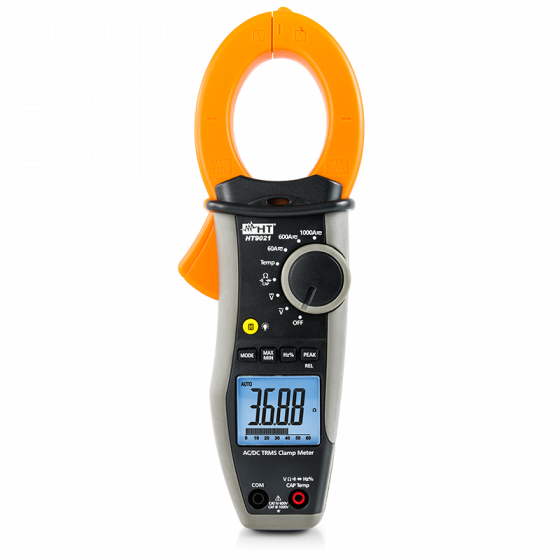

HT9021 HT Instruments Clamp Meter
HT9020 Clamp meter with measurement of powers/harmonics and inrush currents
Features:
AC/DC TRMS CAT IV 600V clamp meter with temperature measurement
HT9021 has been designed to measure AC/DC current up to 1000A in TRMS reaching CAT IV 600V and CAT III 1000V in compliance with safety standard IEC/EN61010- 1.
The clamp is provided with a display with 6000 measuring spots with backlight and bargraph to allow for a simple reading even in poorly lit environments. HT9021 also carries out measurements o voltage up to 1000V, Resistance, Frequency, Capacity and Temperature with K-type probe.
Specifications:
Functions
- Maximum diameter for clamp
- TRMS
- Current measuring range 1000A
- Measuring counts
- AC/DC voltage 1000V
- AC/DC current
- Resistance and continuity test with buzzer
- “Voltsense” for AC voltage recognition
- Frequency
- Capacity
- Temperature with K-type probe
- Diode test
- MAX/MIN
- PEAK
- Relative measurement
- Backlit LCD display
- Bargraph
- Data HOLD
- Relative measurement
- Autorange
- Auto power off
- Power supply
- Measurement category CAT IV
- Weight in grams (batteries included)
- Size (LxWx H) (mm)
Guidelines
- CE MARK
- EMC 2014/30/EU
- EMC: IEC/EN61326
- IEC/EN61010-1
- LVD 2014/35/EU
Технические характеристики
| Manufacturer | HT Instruments |
|---|---|
| Condition | New |
| Amps | 1 kA |
| Volts | 1 kV |
