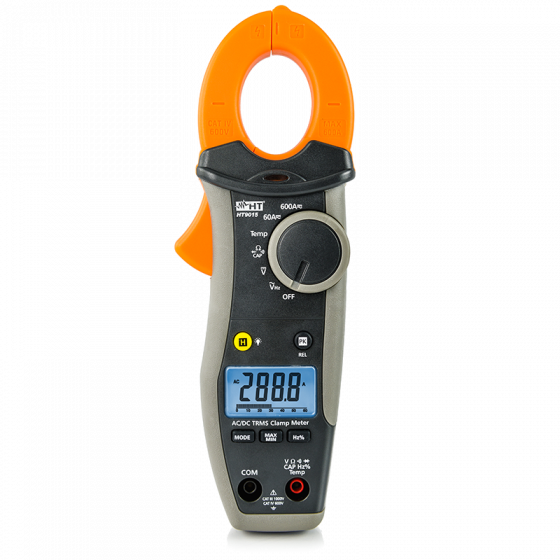

HT9015 HT Instruments Clamp Meter
HT9015 AC/DC TRMS 600A CAT IV clamp meter with temperature measurement
Features:
AC/DC TRMS 600A CAT IV clamp meter with temperature measurement
HT9015 has been designed to measure AC/DC current up to 600A and AC/DC voltage up to 1000V in TRMS reaching CAT IV 600V and CAT III 1000V in compliance with safety standard IEC/EN61010-1.
The clamp is provided with a display with 6000 measuring spots with backlight and bargraph to allow for a simple reading even in poorly lit environments. HT9015 also measures Resistance, Frequency, Capacity and Temperature with K-type probe.
Specification:
Functions
- Maximum diameter for clamp
- TRMS
- Current measuring range 600A
- Measuring counts
- AC/DC voltage 1000V
- AC/DC current
- Resistance and continuity test with buzzer
- Frequency
- Capacity
- Temperature with K-type probe
- Detection of AC voltage without contact
- Diode test
- Duty Cycle (%)
- MAX/MIN
- PEAK
- Relative measurement
- Bargraph
- Backlit LCD display
- Autorange
- Auto Power OFF
- Power supply
- Measurement category CAT IV
- Weight in grams (batteries included)
- Size (LxWxH) (mm)
Guidelines
- CE MARK
- EMC 2014/30/EU
- EMC: IEC/EN61326
- IEC/EN61010-1
- LVD 2014/35/EU
Технические характеристики
| Manufacturer | HT Instruments |
|---|---|
| Condition | New |
| Amps | 600 A |
| Volts | 1 kV |
