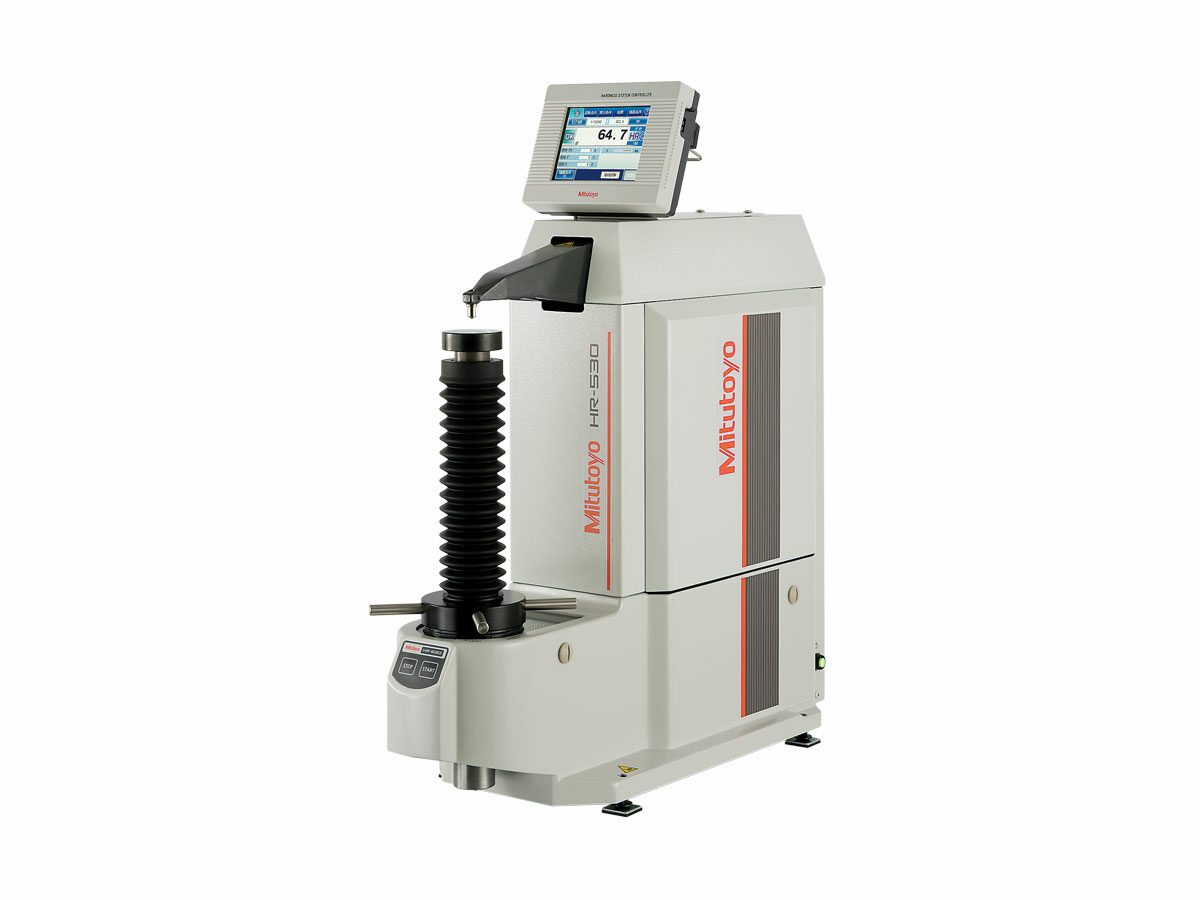

The closed loop test force control on the Mitutoyo HR-530 Rockwell and Brinell Hardness Tester allows for a wide variety of hardness testing including plastics. The HR-530 is capable of testing the inside wall hardness of rings without cutting the ring into pieces. An easy to use brake-start system automatically begins testing when initial force is reached.
- The curved surface correction function enables curved surfaces, such as round bars and spheres, to be tested for hardness as easily as flat surfaces
- Color touch screen control panel displays statistics and graphs, up to five display formats show needed information
- Nose-type indenter enables measurement of a specimen»s flat top surface as well as inside surface of cylindrical specimen
- The HR-530 is available in 9.8” (250mm) or 15.5” (395mm) height capacity models
- Complete with a combination diamond indenter, a 1/16” carbide ball indenter, one flat and one V anvil, 2 HRC, 1 HRBW, 1 HR30TW and 1 HR30N test block
- Hardness testing of plastics according to ASTM D785 (Procedure A and B) and ISO2039-2 are also possible
| Initial Test Force: | <,29.42, 98.07 N / 10, 3 kgf |
|---|
| Test Methods: | Rockwell, Superficial and Light Force Brinell |
|---|
| Brinell Force Range: | 61.29, 98.07, 153.2, 245.2, 294.2, 306.5, 612.9, 980.7, 1226, 1839 N / 10, 100, 125, 15.625, 187.5, 25, 30, 31.25, 6.25, 62.5 kgf |
|---|
| Rockwell Force Range: | 588.4, 980.7, 1471 N / 60, 100, 150 kgf |
|---|
| Superficial Force Range: | 147.1, 294.2, 441.3 N / 15, 30, 45 kgf |
|---|
| Test Force Control: | Automatic |
|---|
| Table Up/Down Mechanism: | Manual |
|---|
| Control Unit: | Color Touch-Panel |
|---|
| Test Force Switching: | Operated with Display Unit |
|---|
| Test Force Hold Time: | 1 — 120 sec |
|---|
| Max Sample Depth: | 5.9′ / 150mm |
|---|
| Inside Diameter of Tube: | .87, 1.38′ / 22, 35mm |
|---|
| Max Table Loading: | 45lbs / 20kg |
|---|
| Ball Indenter: | Tungsten Carbide Ball |
|---|
| Display: | Color LCD Touch Screen |
|---|
| Language: | Japanese, English, German, French, Italian, Spanish, Korean, Simplified Chinese, Turkish, Portuguese, Hungarian, Polish, Dutch and Czech |
|---|
| Data output: | RS-232C, SPC, USB2.0 |
|---|
| Power Supply: | AC120V |
|---|
| Required Accessories: | — |
|---|
| Rockwell Hardness Scales: | HRA, HRBW, HRC, HRD, HREW, HRFW, HRGW, HRHW, HRKW, HRLW, HRMW, HRPW, HRRW, HRSW, HRVW |
|---|
| Superficial Scales: | HR15N, HR15TW, HR15WW, HR15XW, HR15YW, HR30N, HR30TW, HR30WW, HR30XW, HR30YW, HR45N, HR45TW, HR45WW, HR45XW, HR45YW |
|---|
