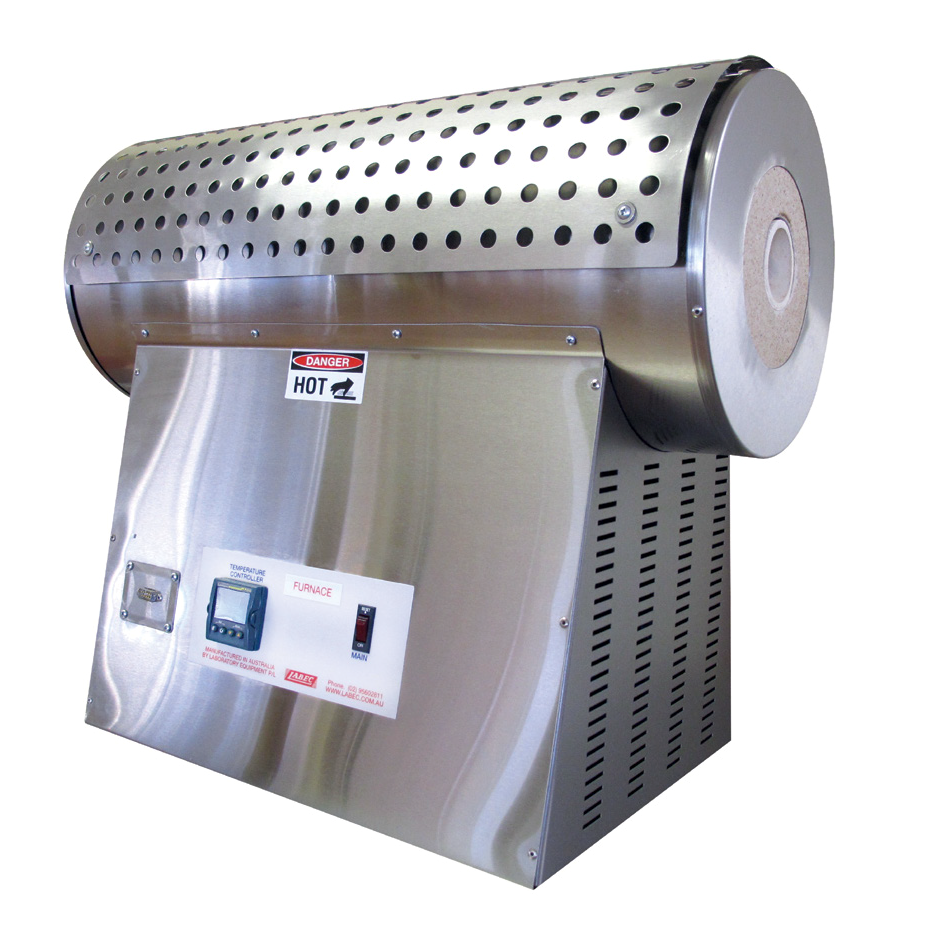

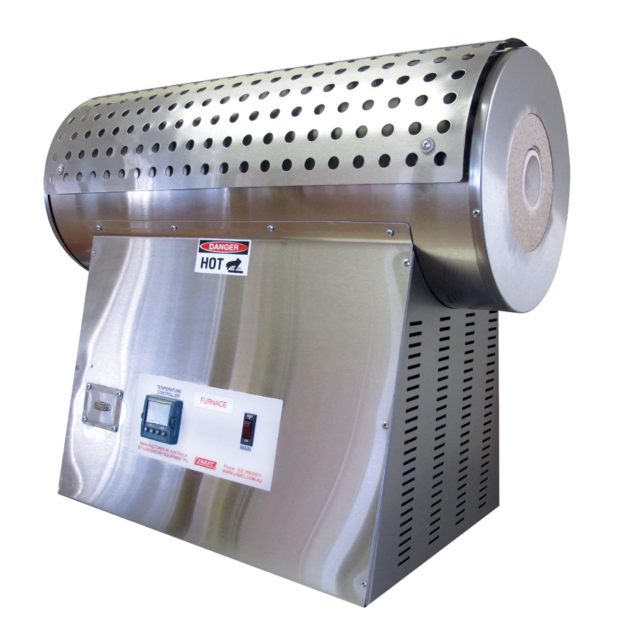

LABEC Horizontal Tube Furnaces are manufactured in Australia with highest quality components for laboratory, commercial and research purposes. The exterior is manufactured from stainless steel for easy maintenance and excellent durability, whilst the double skinned construction keeps the exterior cool at high temperatures. The inner material is fibre board and provides excellent thermal stability.
The furnace features light weight ceramic fibre insulation which enables rapid thermal cycling and heating is by electric embedded elements. The Horizontal Tube Furnaces are available in single or multiple heating zones with independent zone control available on each zone. Policeman safety controllers with independent thermocouples can be fitted. An extensive range of tube diameters are available, ranging from 40mm to 300mm with varying heated length zones available up to 2000mm length.
Custom models are available upon request.
Features:
- RCD/ ELB (earth leakage breaker)
- Type N Thermocouple
- Stainless Steel exterior
- Over temperature thermostat
Additional options — To suit requirements the addition of options such as programmable controllers, timers and cable access ports are also available.
Controller — Digital microprocessor based PID temperature controllers controls the temperature within the range +300°C to +1200°C.
Data logging — When optioned the controller can be connected via RS232/RS485 communication ports which can be connected directly to a data logger or computer to collect this information. Software is available for programming and monitoring.
Specifications:
Model EHTF40-12
EHTF50-12
EHTF60-12
EHTF70-12
EHTF80-12
EHTF90-12
Length 500mm 600mm 600mm 750mm 750mm 1000mm Heated Length 450mm 540mm 540mm 690mm 690mm 900mm Diameter 40mm 50mm 60mm 70mm 80mm 90mm Temperature Maximum +1200°C Temperature Accuracy
1°C
Temperature Fluctuation
+/- 1°C
Construction Temperature sensor — Type N
Heating system — Electric element
Interior — lightweight ceramic fibre
Exterior — Stainless steel Options Cable entry port, timer, programmable controller, custom diameter tubes, single or multiple heat zones, high temperature models, RS232 connection
Safety Over temperature alarm, temperature protection cut off, earth leakage breaker (ELB)
Power 1500W 2000W 2200W 2400W 3000W 3600W Weight 16kg 19kg 23kg 25kg 27kg 49kg
Seal Cap System (Tube Furnaces ) — Designed for atmospheric control, specifically manufactured for high temperature tube furnaces. Features:
- Made of 304 grade Stainless Steel with double high temperature silicone O-rings (300ºC Max) on each flange
- One end flange has a vacuum gauge with adjustable valve, and another end has an adjustable valve
- Seal the tube by tightening the screws on the flange without the need for any welding or glue
- The vacuum sealing assembly will connect to rubber hose
- Excellent for any type of tubing: ceramic, glass, quartz and steel pipe
- Standard sizes are 25mm, 40mm-42mm, 50mm, 57mm-60mm, 76mm, 80mm-82mm, 101mm, 114mm and 152mm
- Customised size assembling is available upon request
- Each set includes: one flange with gauge and valve, one flange with valve, two steel sealing rings, four high temperature silicone O-rings (300ºC Max), and six screws
