last updated : 2019/03/20
| Code | Description | Budget Price | Ship. weight | Ship. vol. | ||
|---|---|---|---|---|---|---|
| XCOLBOXC03BA | COLD BOX, BACKPACK VACCIN CARRIER 3L, complete + 8 ice packs | on request | 2,5kg | 14L | Add | |
General information
Vaccine carrier for storage and transport of small quantities of vaccines. Backpack with an airliner insulating film for the temperature-controlled transportation of vaccines.
Meets WHO/UNICEF standard E4/01
Guarantee temperatures below +8°C for more than 30h at 43°C.

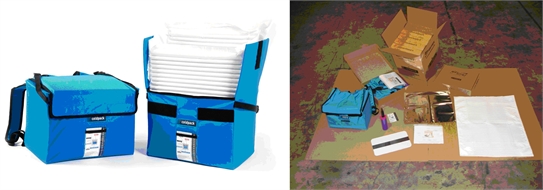

The Backpack Vaccine Carrier comes as a kit comprising 1 foldable backpack, 3 Airliner® (insulating bag), 1 T-Zone tray, 1 manual air pump, 1 aluminum bag, 1 valve protection clip, 8 JAW Packs, 1 assembly guidelines and 1 Thermometer Grid indicating the user the number of icepacks required based on ambient temperature. Includes instructions for assembling
Specifications
Vaccine storage capacity | 3 litres |
Weight fully loaded | 7.7kg |
Weight empty | 1.2kg |
External dimensions | 38 x 27 x 26cm |
Internal dimensions | 34 x19 x 20cm |
Vaccine storage dimensions | 34 x 19 x 5cm |
Lid type & fixing | Self-Gripping Strips |
External materials | Woven Polyester 600D |
Internal lining materials | Aluminum bag |
Insulation materials | Airliner® (3 units) |
Insulation thickness | 3.4 cm |
Number of icepacks required | 8 |
Number of icepacks supplied | 8 |
Icepack type required | E05 or JAW Packs (8 of 0.68litres) |
Cool life without openings | 31 hours at 43°C |
