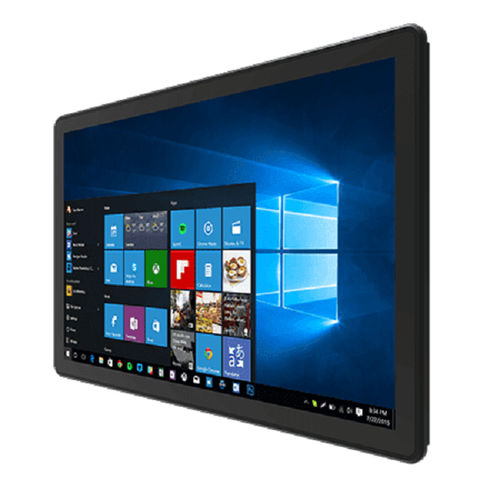

W24ITWS-MHA2-EX 23.8′ Intel® Core™ i5-1135G7 M Series HMI Panel PC KEY FEATURES Intel® 11th Generation Tiger Lake UP3 Core™ i5 CPU Signature true flat display screen with edge-to-edge design Aluminum, anti-corrosion treated housing Superior sealing with front IP65 protection against dust and water Projected Capacitive Multi-Touch Screen (PCAP) Fanless Design Support wide range 9-29 V DC input Quick & Easy Removable 2.5” SSD Bay Slot Support PCIe x4 Card Class 1 Division 2, Group A-D, T4 Certification Fanless Cooling System We use well-defined thermal analysis procedures to verify IPC systems to meet the harsh environment applications. Especially in fanless cooling design, we develop a heat-sink or heat-pipe solution to conduct the heat and the airflow for the best thermal solution. In the fan cooling system, we will analyze the system’s thermal profiles before designing it to ensure the most efficient heat convection. Certified for Hazardous Locations The W24ITWS-MHA2-EX is C1D2 certified computer for remote data collection, process visualization, and control. Full Aluminum Alloy Enclosure, Compact, Low weight design, Excellent Heat Dissipation Like the other Winmate series products with IP65 also features a low-power, fanless design for superior energy efficiency, quiet operation, and an extended product lifecycle. Superior sealing with front IP65 protection against dust and water Winmate’s IP65 Series built for wet and dusty applications, it is rated to IP65 and supports water and dust resistance while keeping a compact and narrow bezel design, suitable for use in wet and dusty environments such as Oil and Gas application.
Технические характеристики
CharacteristicsScreen typeTFT LCD, LED backlight, PCAP capacitive touch screen, multi-touch screenDisplay size23.8Resolution1920 x 1080ProcessorIntel® Core™ i5-1135G7Applicationsfor the food industry, industrial, for IoT applications, POS, for data acquisition systems, POC, data acquisition, for hazardous areas, for the pharmaceutical industry, for clean rooms, for marine applications, for mobile applicationsOther characteristicsmodular, all-in-one, fanless, HMI, fullscreen, shock-proof, chassis-mounted, rugged, VESA mounting, embedded, RFID, wall-mounted, waterproof front panel, real-time, ultra-compact, MIL-STD-810, wide temperature range, aluminum frame, antibacterial, PoE, MIL-STD-461F, IP65, dust-proof, plastic housing, high-performance, slim design, Windows 10 IoT Enterprise, metal chassis, IP67, outdoor, vandal-proof, kiosk, vehicle-mount, rack-mounted, IECEx, corrosion-proof, indoor, SCADA, sunlight-readable, multimedia, explosion-proof, with external power adapter, ATEX
