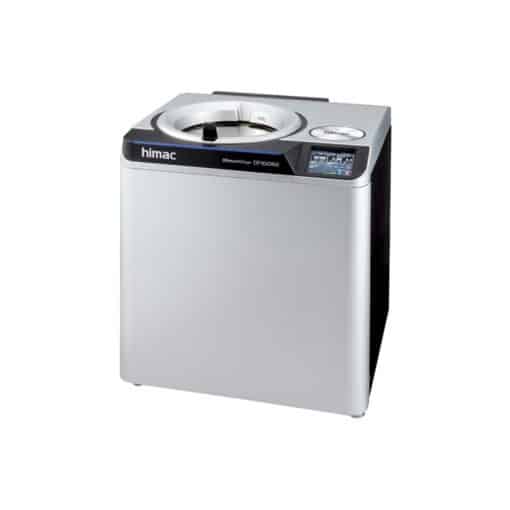

Хитачи-Химак CP100NX

Product Description Himac CP100NX is a general-purpose Ultracentrifuge with the performance ability up to 100,000 rpm assisting in a wide range of separation protocols in cell biology, biochemistry, molecular biology and more. Max Speed: 100,000 rpm Max G Force: 803,000 xg (P100AT2 rotor) Single-phase200,208,220,230,240V, 20A, 50/60Hz Automatic Rotor Life Management System Rotor life is maximized Visual Balancing by non-contact imbalance sensor Economy Mode * for energy saving Operating History : Max. 5,120 logs Programmed Operation : 1,000 programs User Lockout (standard function) * The mode works while drive unit and vacuum pump are stopped ** under in-house test condition Specifications Model CP100NX Max. Speed (rpm) 100,000 Max.RCF (xg) 803,000 (P100AT2) Speed Control Accuracy &plusmn,2 rpm (1,000 rpm to max. speed) ACCEL/DECEL Mode ACCEL : 10 / DECEL : 11 (10 and coasting) Set Speed Range 1,000 rpm to max. speed in increments of 100 rpm Timer from 1 min to 999 hours 59 min (with 1 min increments) with HOLD function Set Temperature Range from 0C to 40C with 1C increments (Accuracy : +/- 0.5C) Vacuum System Oil rotary vacuum pump and oil diffusion pump Operating Sound 51dB(A) (running at set speed, under in-house test condition) Heat Radiation Into a Room 1kW or below Cooling System Thermo-module cooling system (CFC/HCFC/HFC-free) Control Panel Touch-sensitive color LCD panel (6.5 inch) Data Communication USB : Host x 1, Devise x 1 / LAN x 1 Rotor Life Management Automatic Rotor Life Management for rotors with RLM adapter Registered by serial number to the system for rotors with optical overspeed disk Size (mm) 790 (W) x 690(D) x 880(H) (with door cover : 890(D)) Max. height to the end of the door handle : 925(H) / Height to the table : 863(H) Floor area (m2) 0.81 (900 x 900 mm) *1 Weight (kg) 390 Power Single phase, AC200V, 208V and 220V +/-10%, Max. 20A (normally 8A) Single phase, AC230V and 240V +/-10%, Max. 16A (normally 7A) Installation Environment Ambient temperature for operation : 2C to 40C Ambient temperature for performance guarantee : 10C to 30C Standard CE marking qualified Product Safety : EN61010-1 and EN 61010-2-020 Electromagnetic Compatibility : EN 61326-1 cCSAus certificated *2

Технические характеристики
