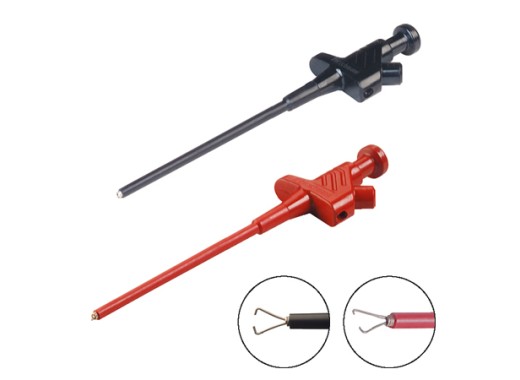

These kleps 30 are commonly used test clamps. Based on the 4 mm pin system they can be connected to most standard cables. The clamp is capable of gripping cables up to a thickness of 4 mm and because of the powerful spring the contact resistance is very small with only 50 mΩ. The clamp is made of spring steel coated with tin, which makes it very durable. Furthermore, there is a small screw in the housing to secure a measuring lead to prevent loosening.
The terminals are tested to withstand voltages of 60 V DC and currents of 4 A. They are available in black and red.
Specifications Contact resistance50 mΩ Voltage30 V AC
60 V DC Current4 A Maximum cable thickness4 mm Connector pin4 mm MaterialPF
