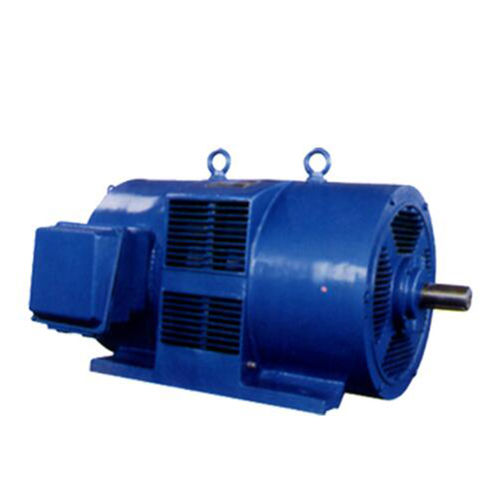

Y/YX series motors stand out for high efficiency, high energy savings, low vibration, low weight, compact structure, reliable operation and convenient maintenance. The motors comply with the national standard GB755 and the relevant international standards, and suitable to drive compressors, fans, water pumps, industrial freezers, conveyor belts, crushers and other general machinery. Please specify the requirements in the order when motors are mounted on high moment of inertia equipment like blower, coal pulverizer, rolling mill, winch and belt conveyor. The motor frame is welded by steel plate, and offer excellent rigidity and vibration resistance performance. The non-stop filling and discharging bearing system ensures a convenient maintenance. Special requirements on voltage, power, frequency and mounting dimension can be customized. YKS water cooling motors have the same power range, performance, dimension as Y series. Y/YX series motors comply with the national standard GB755 and the relevant international standards, frame is welded by steel plate, and offer excellent rigidity and vibration resistance performance. They are manufactured with F insulation structure and VPI vacuum pressure impregnation process. The non-stop filling and discharging bearing system ensures a convenient maintenance. The motor base is welded into one body by steel plate, which has good rigidity and vibration resistance. The motor adopts F grade insulation structure, vacuum pressure dip paint has good insulation performance. Bearing structure is equipped with non-stop oil filling and discharging device, convenient for users to use and maintain.
Технические характеристики
CharacteristicsAC/DCthree-phaseTypeinductionVoltage 6000 V, 10000 VProtection classIP23ConfigurationcompactNumber of poles4-pole, 6-pole, 8-pole, 2-pole, 10-pole, 12-poleCooling mechanismair-cooledApplicationsblower, for conveyors, for compressors, for water pumps, for crusher, for winches, for roller millsOther characteristicshigh-efficiency, low-vibration, high-voltage, energy-savingPower
Max.: 3,550 kW (4,826.655 hp)
Min.: 220 kW (299.117 hp)
Current
Max.: 399.4 A
Min.: 15.8 A
Torque
1.8 Nm (1.3276 ft.lb)
Rotational speed
Max.: 2,980 rpm (18,723.89 rad.min-1)
Min.: 490 rpm (3,078.76 rad.min-1)
Operating temperature
Max.: 40 °C (104 °F)
Min.: -15 °C (5 °F)
