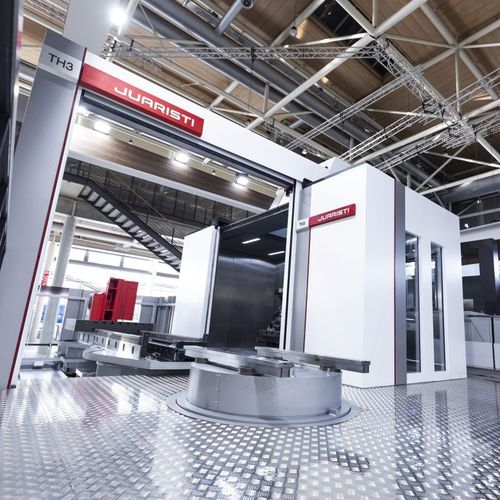

The TH series is optimised for multitasking. Its symmetrical design with central head and 4 vertical guides (two front and two rear) and its oversized structural elements provide great robustness and stability. It stands out for its powerful chip removal, with feeds of up to 40 m/min and a 3 m/s2 acceleration. It is capable of working large, complex work pieces thanks to its wide axis stroke (4,000 – 2,500 – 2,500 mm XYZ) and its compatibility with up to 12-tonne rotary tables. High dynamics in a large machining centre Thermo-symmetric structure Multifunctionality High customisation and automation capacity options. STRUCTURAL ELEMENTS Unbeatable thermal and mechanical performance thanks to its symmetrical design with central head and 4 vertical guides. Closed design that integrates a protective cabinet with chip conveyor and allows the complete collection of chips and cutting fluids without contaminating the workspace. Automatic doors for loading/unloading pallets, ceilings with lights and parts cleaning systems with coolant jets. HEADS AND TABLES Universal head ACD 2.5º x 2.5º – 1º x 1º – 0.001º x 0.001º. Compatible with boring bar and fixed horizontal spindle. Large working space of up to 2,000 x 2,500 mm and simple working of complex parts with rotary tables. TECHNOLOGY AND AUTOMATION Automatic turning, milling and boring head changes. Automatic pallet change with FMS system. Automatic tool change ATC chain type (up to 160 positions), matrix or robot type (up to 400).
Технические характеристики
CharacteristicsControl typeCNCTypeuniversalNumber of axes5-axisOther characteristicshigh-performanceX travel
2,000 mm, 3,000 mm, 4,000 mm, 5,000 mm (79 in)
Y travel
200 mm, 1,500 mm, 2,500 mm, 3,000 mm (8 in)
Z travel
1,500 mm, 2,000 mm, 2,500 mm, 3,000 mm (59 in)
