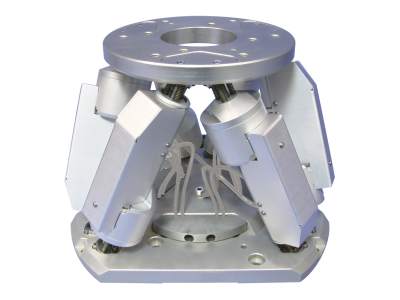

The HXP50V6-MECA Vacuum Compatible 6-Axis Hexapod is a parallel kinematic motion device that provides six degrees of freedom: X, Y, Z, pitch, roll, and yaw. The HXP50V6 has a 5 kg centered load capacity and is a cost-effective solution to complex motion applications that demand repeatability and accuracy in up to six independent axes. Contrary to the image of hexapods being complex and highly priced, the HXP50 hexapod is not only affordable but extremely easy to use. Determine if the HXP50V6-MECA is the right hexapod for your application by using Newports free HexaViz Simulation Software. Order with HXP50V6-ELEC-D.
Технические характеристики
- Type Vacuum Compatible
- Size Ø200 x 151 mm
- Platform Diameter 125 mm
- Centered Load Capacity 50 N
- Travel Range X, Y, Z ±17, ±15, ±7 mm
- Travel Range ΘX, ΘY, ΘZ ±,9, ±,8.5, ±,18
- Minimum Incremental Motion X, Y, Z 0.2, 0.2, 0.1 m
- Minimum Incremental Motion ΘX, ΘY, ΘZ 0.1, 0.1, 0.2 mdeg
- Uni-directional Repeatability X, Y, Z — Typical ±,0.20, ±,0.20, ±,0.20 m
- Uni-directional Repeatability ΘX, ΘY, ΘZ — Typical ±,0.40, ±,0.40, ±,0.20 mdeg
- Maximum Speed X, Y, Z 2, 1.9, 0.8 mm/s
- Maximum Speed ΘX, ΘY, ΘZ 2.4, 2.4, 6 /s
- Rigidity X, Y, Z 2, 2, 25 N/m
- Bi-directional Repeatability (X,Y,Z), Typical ±,1.0, ±,1.0, ±,0.50 m
- Bi-directional Repeatability (ΘX, ΘY, ΘZ), Typical ±,0.50, ±,0.50, ±,1.0 mdeg
- Connectors DB25 Male (6)
- Cable Length 1.5 m
- Motor Stepper motor
- Origin Optical, close to lower limit
- Origin Repeatability X,Y,Z: ±,5.0, ±,5.0, ±,2.5 m
U,V,W: ±,2.5, ±,2.5, ±,5.0 mdeg - Encoder Resolution 0.42283 m
- Minimum Incremental Motion Open Loop/Closed Loop
X,Y,Z: 0.2/0.8, 0.2/0.8, 0.1/0.4 m
U,V,W: 0.1/0.4, 0.1/0.4, 0.2/0.8 mdeg - Number of Axis 6
- Weight 2.2 kg
- Vacuum Compatibility 10-6 Torr
- Thread Type M6
- MTBF 5,000 h (25% load, 10% duty cycle)
- Compliance RoHS 3, CE
