Description

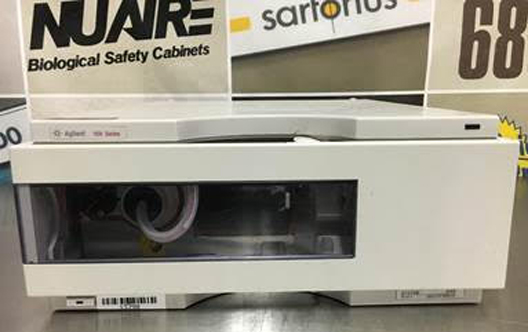

The Agilent 1100 Series G1315 Diode Array Detector is designed for the maximum optical performance. Flexible slit setting from fine bands to highest sensitivity, with settings of 1 nm the fine structure of benzene can be revealed even at 0.7mAUFS. A broad slit of 8 or 16nm can be chosen to minimize baseline noise thus enhancing sensitivity. System specifications include:
Specifications:
- Wavelength range: 190-950 nm
- Light source: Deuterium and tungsten lamps
- Detection type: 1024 element photodiode array
- Short term noise (ASTM) single & mult-wavelength: ±, 1 x 10-5 AU at 254 and 750 nm
- Drift: 2 x 10-3 AU / hr at 254 nm
- Linear absorbance range: >, 2 AU (upper limit)
- Wavelength accuracy: ±, 1 nm
- Wavelength bunching: 1 400 nm
- Diode width: <, 1 nm
- Control and data evaluation: Agilent Chemstation for LC
- Slit width: 1, 2, 4, 8, 16 nm
Can be sold as an individual component or as part of a complete stack
